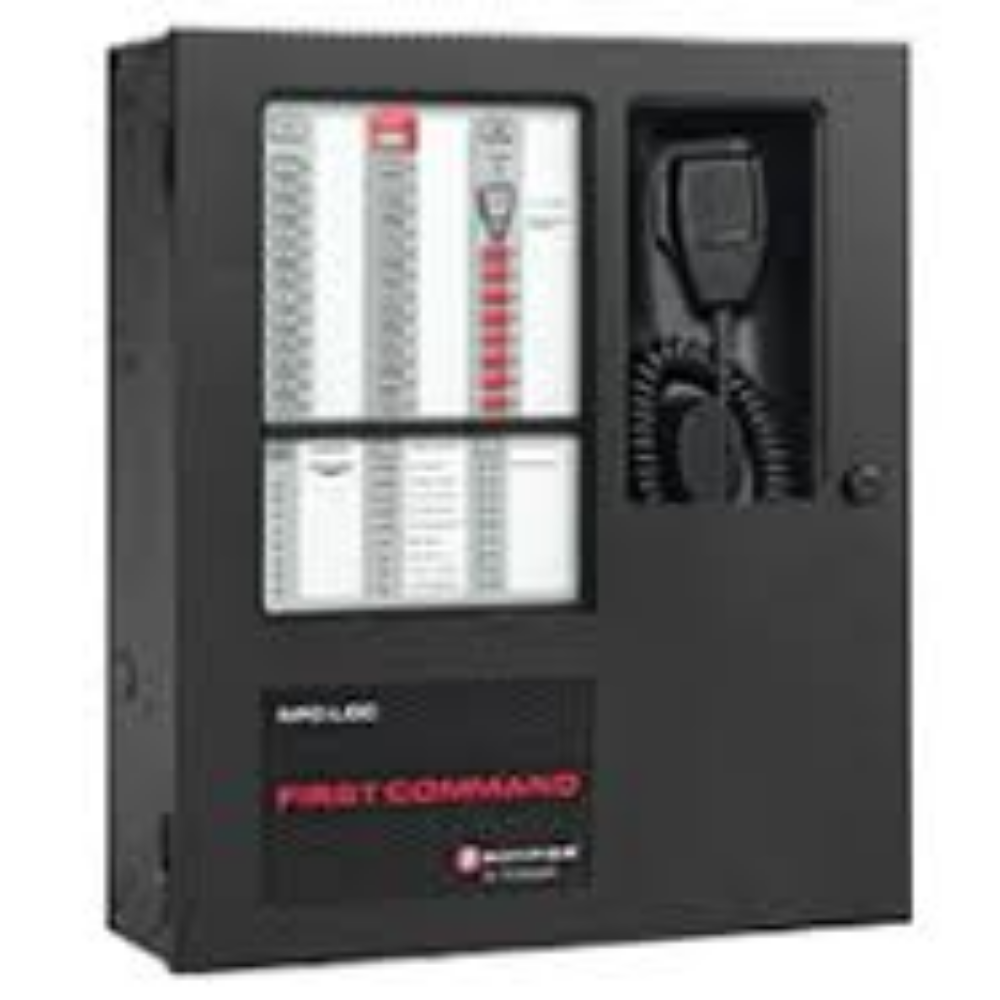

The Notifier NFC-LOC is a FirstCommand Local Operator Console. It works with the NFC-50/100(E) Emergency Voice Evacuation panel. First, it extends the main console’s display and control to a remote location. As a result, staff can manage voice evacuation from more than one point in a building.
The NFC-LOC mirrors the NFC-50/100 main console interface. In addition, it includes a built-in microphone with a push-to-talk feature. Therefore, an operator can make ALL CALL pages from the remote console.
Notifier NFC-LOC features and control
The console provides messaging status and control of the NFC-50/100(E) primary operator console. Also, it offers fourteen programmable message buttons. As a result, an operator can activate all speaker circuits remotely. Furthermore, a keyed cabinet helps prevent unauthorized access.
The NFC-LOC draws its operating power from the main console. Specifically, it requires an external data bus, an external audio riser, and 24 VDC power. However, up to eight NFC-LOCs can connect to one NFC-50/100(E) console.
Verified details
- Type: remote Local Operator Console for the NFC-50/100(E) voice panel
- Microphone: built-in, with push-to-talk for ALL CALL paging
- Controls: full NFC-50/100 interface plus 14 programmable message buttons
- Power: 24 VDC (non-resettable) from the NFC-50/100 main console
- Connections: external data bus and audio riser from the main console
- Capacity: up to eight NFC-LOCs per NFC-50/100(E)
- Listings: UL 864 and UL 2572 (UL S635); seismic (IBC/CBC)
Finally, the NFC-LOC puts full voice-evacuation control at a remote station. Therefore, it suits schools, healthcare, and large facilities.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 24.5 lbs |
|---|---|
| Dimensions | 22 × 21 × 7 in |
| Condition | New |
| Manufacturers | Notifier |
| Part Type | Replacement Part |
