The Notifier RPT-F is a network fiber-optic repeater for NOTI•FIRE•NET fire alarm networks. First, it regenerates network signals over fiber. As a result, installers can extend transmission distance between Notifier panels. In addition, it can convert media type between copper wire and fiber.
How the Notifier RPT-F fiber repeater works

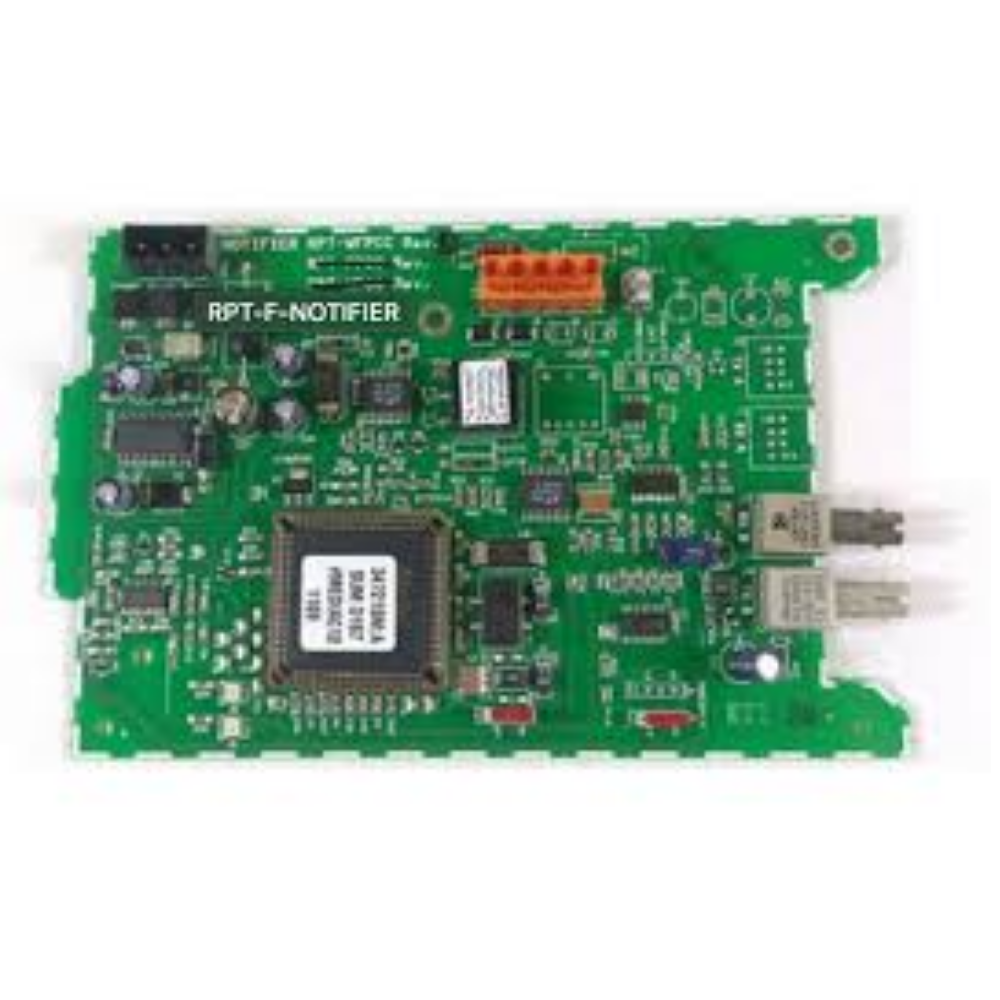

The RPT-F is a single PC board mounted in a compatible enclosure. Specifically, it transmits at 312,500 bits per second using ST-style fiber connectors. Furthermore, the unit accepts both 62.5/125 µm and 50/125 µm multimode fiber.
RPT-F specifications
- Function: network repeater and wire-to-fiber media converter
- Network: NOTI•FIRE•NET
- Data rate: 312,500 bps
- Power input: 24 VDC
- Fiber type: 62.5/125 µm or 50/125 µm multimode
- Max attenuation: 8 dB (62.5/125 µm); 4.2 dB (50/125 µm)
- Wavelength: 820 nm (standard 850 nm fiber acceptable)
- Fiber connectors: ST style
- PC board size: 8.0″ × 8.0″ (203.2 × 203.2 mm)
Therefore, the RPT-F suits large networks where copper-only segments would exceed allowable distance. Also, it provides electrical isolation between network segments through the fiber medium.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.9 lbs |
|---|---|
| Dimensions | 12 × 9.5 × 3.9 in |
| Condition | New |
| Manufacturers | Notifier |
| Part Type | Replacement Part |
