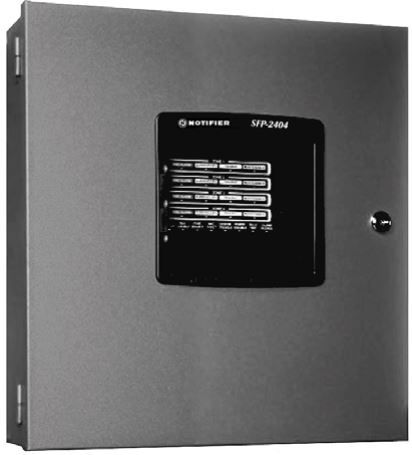

The Notifier SFP-2404 four-zone conventional fire alarm control panel protects commercial and institutional buildings. First, it monitors four conventional initiating zones. As a result, it suits offices, schools, healthcare sites, and light industrial spaces.
This panel meets NFPA 72 requirements for conventional fire alarm systems. Also, it carries UL listing for fire alarm control units. Therefore, it fits both retrofit and new construction.
Notifier SFP-2404 four-zone conventional features
The panel provides four Class B initiating device circuits. In addition, a Class A option is available. It also includes two Class B notification appliance circuits with strobe synchronization.
Furthermore, the panel offers 3.0 amps of total system power. Then you can expand that to 6.0 amps when needed. Form-C alarm, trouble, and supervisory relays are also standard.
Compatibility
The SFP-2404 works with two-wire and four-wire smoke detectors. Also, it supports pull stations, waterflow, and tamper switches. In addition, it accepts System Sensor i3 detectors with drift compensation and maintenance alerts.
- Zones: 4 Class B IDC (Class A optional)
- NACs: 2 Class B with strobe sync (Class A optional)
- Power: 3.0A total, expandable to 6.0A
- Relays: Form-C alarm, trouble, supervisory
- Listing: UL, NFPA 72
Confirm device counts and circuit classes for your design before ordering. Then plan your zones accordingly.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 0.375 × 14.5 × 15.342 in |
| Condition | New |
| Manufacturers | Notifier |
| Part Type | Pull Station |
