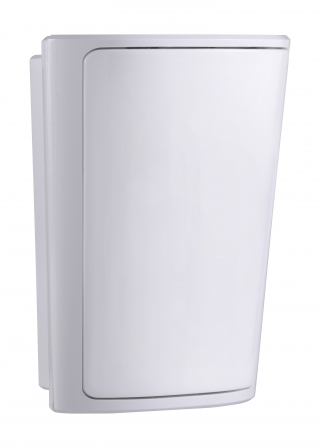

The DSC PG4914 PowerG Wireless Motion Detector represents advanced intrusion detection technology designed specifically for commercial fire and security systems. This professional-grade wireless sensor provides comprehensive motion detection capabilities with superior signal transmission and robust architectural integration for complex commercial environments.
Engineered for seamless compatibility with PowerG-enabled control panels, the PG4914 utilizes advanced 433 MHz wireless communication protocol, delivering exceptional signal range and penetration through walls and structural barriers. Its sophisticated passive infrared (PIR) sensor technology enables precise motion detection with sophisticated adaptive algorithms that minimize false alarm potential in challenging commercial settings.
Key Features
- Long-range wireless communication up to 2 kilometers line-of-sight with PowerG bidirectional frequency hopping technology
- Adaptive digital signal processing with multi-zone PIR sensor for enhanced detection accuracy
- Superior anti-masking and tamper protection mechanisms
- Battery-powered operation with extended 5-year battery life under typical commercial installation conditions
- Compatible with addressable fire alarm panels and intrusion detection systems supporting PowerG protocol
- UL 639 and UL 464 listed for professional commercial security applications
Specifications
- Frequency: 433 MHz PowerG
- Detection Range: Up to 35 feet (10.7 meters)
- Detection Angle: 110-degree coverage
- Power Source: 3V Lithium battery (included)
- Operating Temperature: 32°F to 120°F (0°C to 49°C)
- Dimensions: 4.3″ x 2.4″ x 1.8″ (109mm x 61mm x 46mm)
Ideal for deployment in commercial facilities including office complexes, retail environments, educational institutions, healthcare facilities, and industrial complexes, the DSC PG4914 provides reliable motion detection with minimal infrastructure modification. Its wireless design facilitates rapid installation and seamless integration with existing security and fire alarm infrastructure.
Engineered to meet NFPA 72 requirements for commercial detection systems, this motion detector supports comprehensive security strategies by providing intelligent, adaptive sensing across diverse architectural environments.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.07 lbs |
|---|---|
| Dimensions | 4 × 3 × 3 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Replacement Part |
