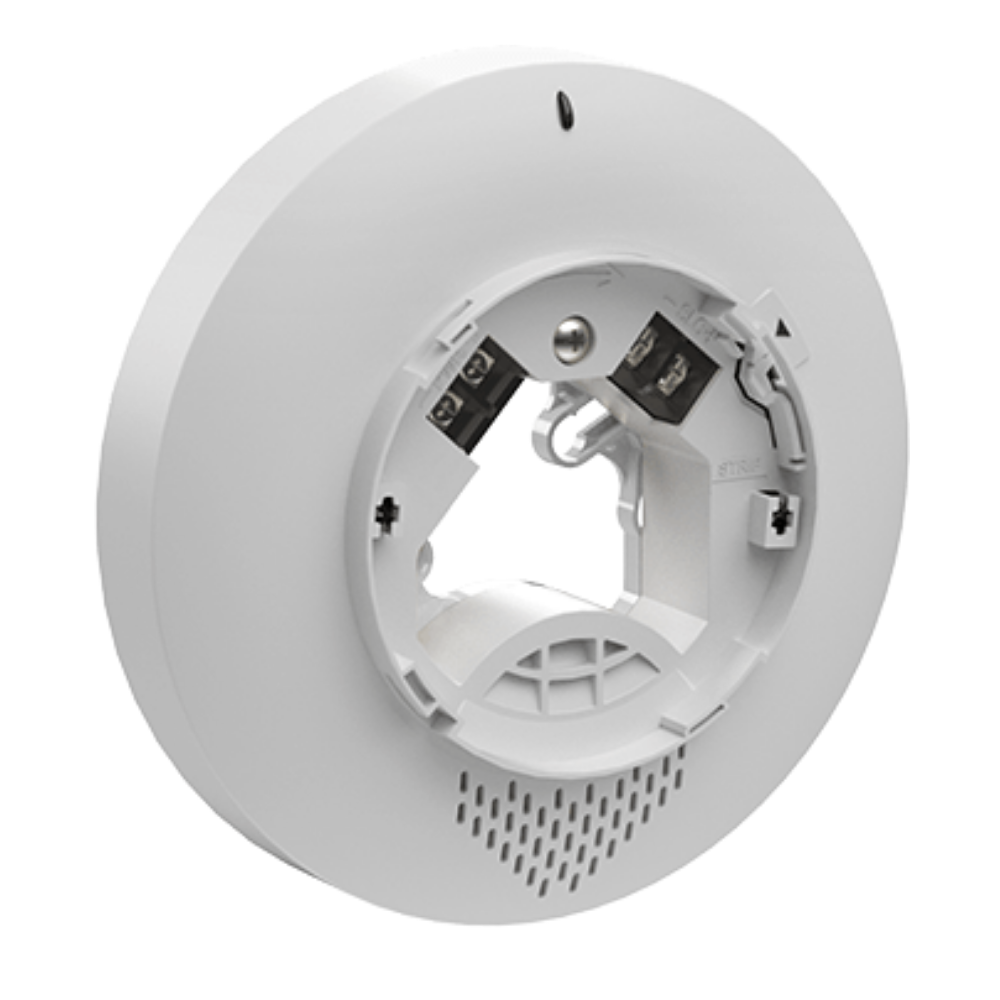

The POTTER PAD300-LFSB is an addressable low frequency sounder base for Potter IPA and AFC/ARC Series panels. It produces a 520 Hz ± 10% square wave. As a result, the base meets NFPA 72 sleeping-space audibility requirements. Specifically, the lower frequency wakes occupants more reliably, including those with mild to severe hearing loss.
How the POTTER PAD300-LFSB Operates
The sounder module is independent of the SLC. Therefore, it does not consume a loop address. Instead, the base uses Potter’s PAD sub-point addressing feature. As a result, the device can be programmed as a single-station, zone, or all-call sounder.
Furthermore, the sounder passes through the sound pattern sent by the power supply. Therefore, the base reproduces any pattern the power source provides. In addition, the detector head is held in place by an optional locking feature.
Mounting and Wiring
The base mounts directly to a 1-gang, 4-inch square, 4-inch octagon, or several other electrical-box patterns. Specifically, the base accepts single-gang, double-gang, 3-1/2″ square, and 4″ square boxes. Also supported are 3-1/2″ and 4″ octagon boxes plus 50/60/70 mm c/c patterns. Also, terminals accept 22 to 12 AWG.
Key Features
- 520 Hz ± 10% square wave per NFPA 72 sleeping-space requirements
- Addressable via PAD sub-point — does not consume an SLC address
- Single-station, zone, or all-call programmable
- Mappable to any device on the panel
- SLC Class A, Class X, and Class B compatible
- Power input supervised internally — no external relays required
- UUKL Listed for Smoke Control
Specifications (per Potter datasheet 8830213 Rev D 7/24)
- Stock No.: 3992786
- SLC Voltage: 24 VDC
- SLC Standby Current: 300 µA
- PWR Voltage Range: 16 VDC at 155 mA / 24 VDC at 95 mA / 33 VDC at 75 mA
- PWR Active Current: 155 mA
- Alarm LED Current: 1.4 mA
- Sound Pressure Level: 75 dB at 10 ft per UL 464; 85 dB at 10 ft per UL 268
- Installation Temperature: 32°F to 150°F (0°C to 66°C)
- Operating Humidity: <93% (non-condensing)
- Dimensions: 6.4″ diameter × 1.57″ H
- Weight: 240 g (8.47 oz)
- Wiring: 22–12 AWG
Order the POTTER PAD300-LFSB
Life Safety Consultants stocks the POTTER PAD300-LFSB alongside compatible PAD300 series detector heads. To order, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 7 × 7 × 2 in |
| Condition | New |
| Manufacturers | Potter |
| Part Type | Replacement Part |
