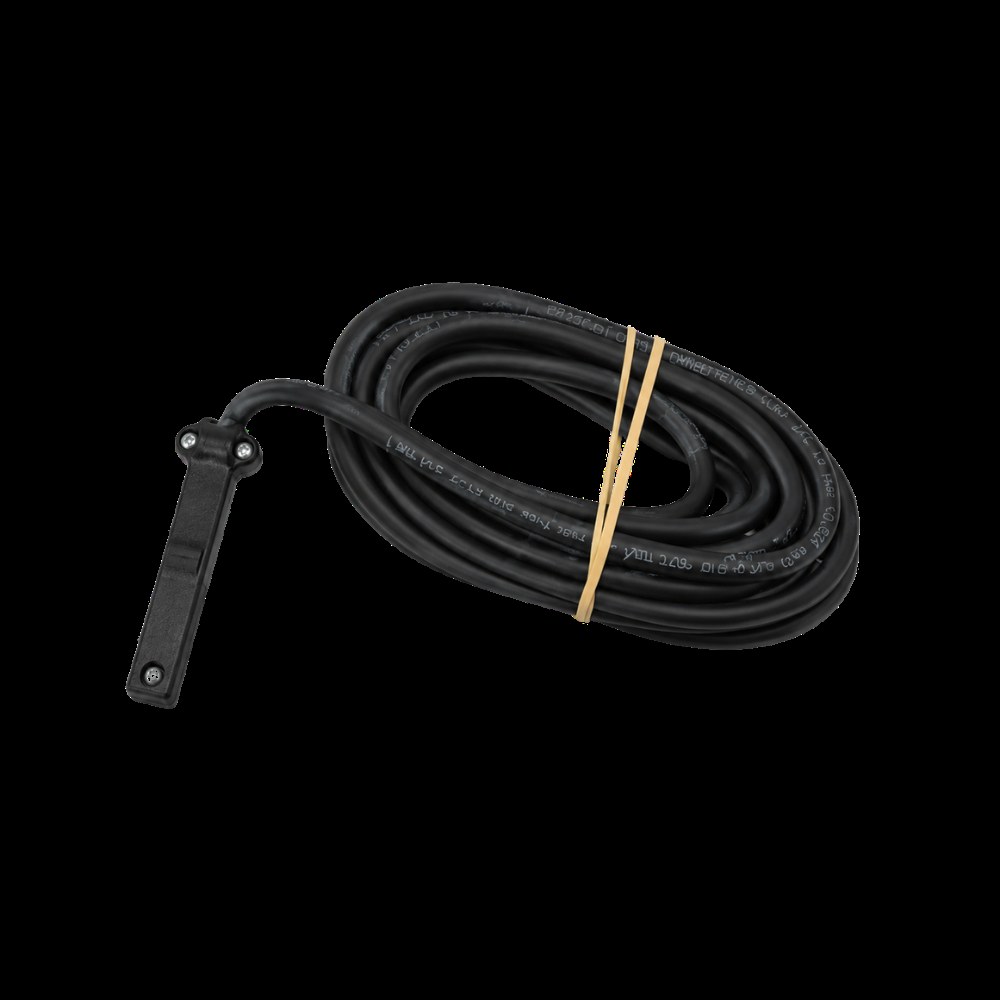

The POTTER PTS-C CABLE is the 16-foot replacement cable and plug assembly. It pairs with the Potter PTS-C Plug Type Supervisory Switch. The standard PTS-C ships with approximately 8 feet of cable. Therefore, this 16-foot assembly is used when the host PTS-C must mount farther from the supervised valve. In addition, it serves as a direct replacement for damaged or worn cables.
How the POTTER PTS-C CABLE Works With the PTS-C

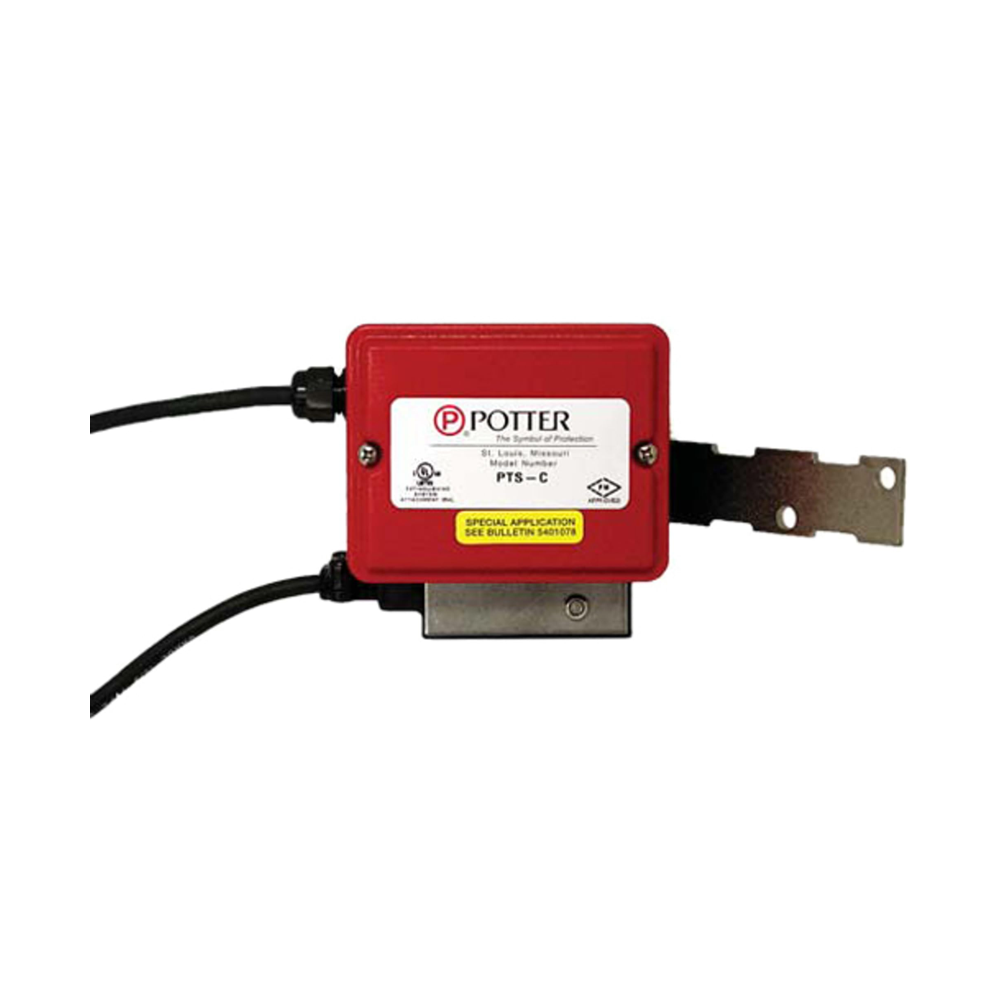

The PTS-C supervises a control valve by routing this cable through the valve handle. As a result, turning the valve pulls the plug from the housing. Specifically, the plug cannot be reinserted until the housing cover is removed with the supplied hex key. Furthermore, removing the cover trips the cover tamper switch.
This product is the cable-and-plug accessory only. It does NOT include the PTS-C housing or supervisory mechanism. Therefore, order it in addition to a PTS-C unit, or as a replacement for a damaged original cable.
Key Features
- 16-foot replacement cable for the Potter PTS-C supervisory switch
- 2-wire, 18 AWG waterproof construction
- Integrated plug for direct insertion into the PTS-C housing
- Suitable for outdoor / wet location use with the PTS-C NEMA 6P enclosure
- Maintains UL, cUL, FM, CSFM, NYMEA listings of the host PTS-C
Specifications (per Potter PTS-C datasheet 5401078 Rev J 5/08)
- Stock No.: 1019200
- Length: 16 ft (approx)
- Construction: 2-wire, 18 AWG, waterproof
- Plug Contact Ratings (host PTS-C): 100 mA at 28 VDC/AC; 250 mA at 12 VDC/AC
- Compatible Switch: Potter PTS-C Plug Type Supervisory Switch (stock 1010201)
- Host Operating Temperature: –40°F to 140°F (–40°C to 60°C)
Order the POTTER PTS-C CABLE
Life Safety Consultants stocks the POTTER PTS-C CABLE alongside the host PTS-C plug type supervisory switch. To order, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.8 lbs |
|---|---|
| Dimensions | 9 × 8 × 1 in |
| Condition | New |
| Manufacturers | Potter |
| Part Type | Replacement Part |
