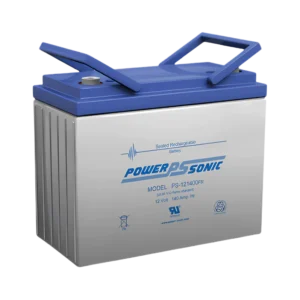

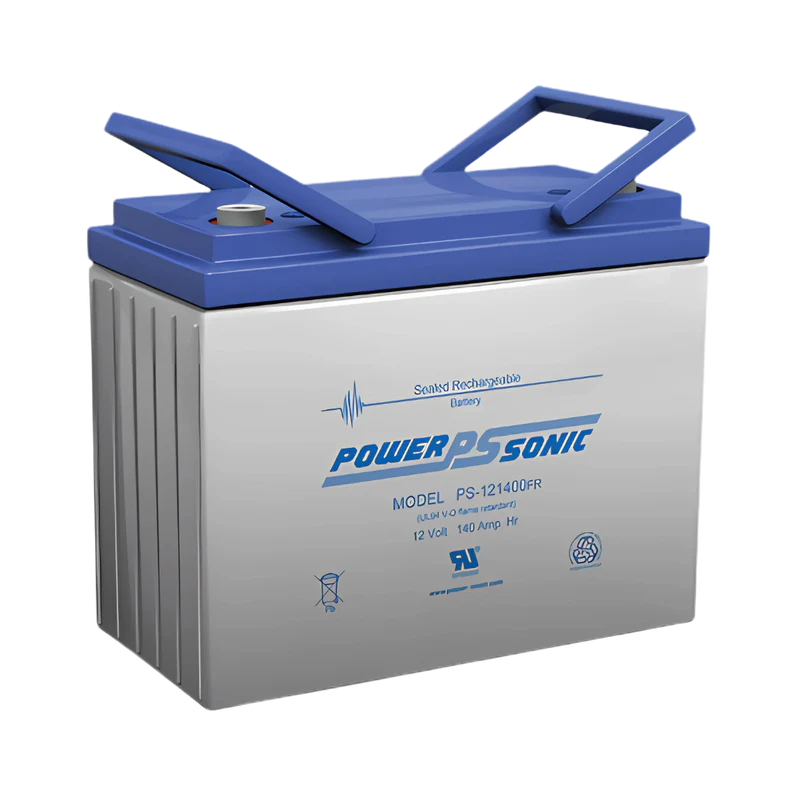

The Power Sonic PS-121400 M8 FR is a 12V 140Ah sealed lead-acid backup battery. Specifically, this is the M8 threaded-terminal variant with a flame-retardant case. Furthermore, the battery serves fire alarm panels, emergency lighting, UPS systems, and security systems that need long-duration standby capacity.
How the Power Sonic PS-121400 M8 FR performs
The battery uses Absorbent Glass Mat (AGM) technology. As a result, the cells deliver high energy density and reliable float performance. In addition, the valve-regulated, maintenance-free, spill-proof construction means no electrolyte refilling is required. Therefore, the unit can be mounted in cabinets that prohibit vented batteries. The case and cover are rugged ABS material that resists vibration and impact during transport and service.
Verified specifications
The nominal voltage is 12.0 VDC. Capacity at the 20-hour rate is 140 Ah. Also, capacity at the 10-hour rate is 135 Ah. The case is UL 94 V-0 flame-retardant rated. Furthermore, dimensions are 13.50 inches long, 6.73 inches wide, and 11.15 inches tall (with terminals). Weight is approximately 100 lbs. The terminals are M8 threaded studs for high-current cabinet connections.
Where this battery fits
Installers use the PS-121400 M8 FR in large fire alarm cabinets needing extended 24- or 60-hour standby. In addition, it is widely paired with addressable and conventional FACPs from major manufacturers. Therefore, the unit covers most commercial standby applications at the 140 Ah capacity point.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 99 lbs |
|---|---|
| Dimensions | 13.5 × 6.8 × 11.2 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Replacement Part |
