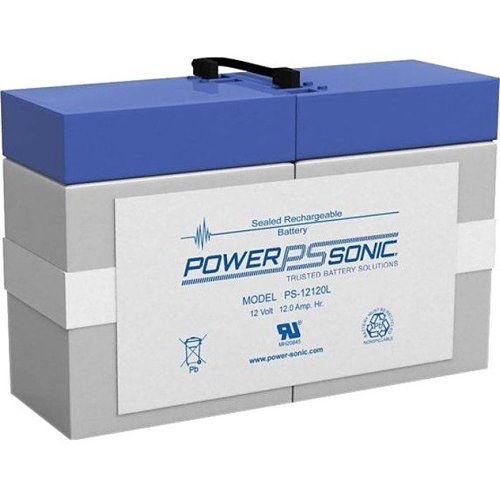

The Power Sonic PS-12120L FP is a 12V general-purpose sealed lead acid (SLA / VRLA) battery. Specifically, it ships with FP terminals per the Power-Sonic spec. First, it provides standby and light-cyclic backup for fire alarm panels, security systems, and emergency lighting. Then, the AGM construction makes it spill-proof and maintenance-free.
How the Power Sonic PS-12120L FP is used
Integrators choose the PS-12120L when a panel calls for a 12V SLA in the 12-13 Ah class. Also, the long-form L footprint fits cabinets that need a slimmer profile than the standard PS-12120. In addition, the AGM design allows operation in any orientation. As a result, the battery works in compact fire-system enclosures.
PS-12120L FP product details
- Nominal voltage: 12.0 V (6 cells)
- Nominal capacity: 13.0 Ah at 20-hr rate (per Power-Sonic current datasheet)
- Terminals: FP-style Faston tab (per Power-Sonic; confirm dimensional fit before ordering)
- Chemistry: AGM sealed lead acid (VRLA), maintenance-free
- Case: ABS (UL94 HB; V-0 available)
- Dimensions: 8.5 in (L) × 2.76 in (W) × 5.51 in (H)
- Approximate weight: 9.7 lb (4.4 kg)
- Float charge: 13.50-13.80 V at 20°C; cycle charge: 14.10-14.40 V at 20°C
- Operating temperature: charge -4°F to 104°F (-20°C to 40°C); discharge 5°F to 122°F (-15°C to 50°C)
- Approvals: UL Recognized, UL 1989, IEC 60896, VdS, UN2800 non-spillable
Typical applications
Also, common uses include fire alarm panel backup, security and access control standby, emergency lighting, and UPS. Finally, confirm physical fit and terminal style against the current Power-Sonic PS-12120L datasheet before ordering. Specifically, the FP terminal is one of several variants Power-Sonic offers for this model.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 8.8 lbs |
|---|---|
| Dimensions | 8.52 × 2.75 × 5.75 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Replacement Part |
