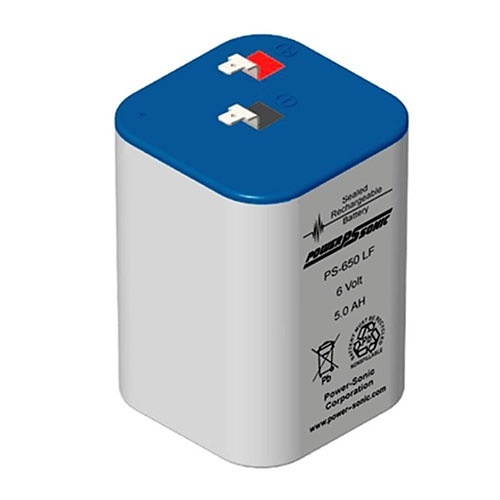

The Power Sonic PS-650LF F1 is a 6V, 5.0 Ah sealed lead acid (SLA / VRLA) battery. Specifically, it ships in a near-square footprint with F1 (0.187″ / 4.75 mm) quick-disconnect tabs. First, it supplies standby power for emergency lighting heads, small fire and security panels, and signaling devices. Then, the AGM construction is spill-proof and maintenance-free.
How the Power Sonic PS-650LF F1 is used
Therefore, technicians specify the PS-650LF when a 6V/5Ah SLA in a compact upright form is called out. Also, the squared footprint fits inside emergency-lighting enclosures where a wider but shorter battery is needed. In addition, F1 tabs match standard quick-connect leads. As a result, the PS-650LF F1 covers low-current standby duty in life-safety hardware.
PS-650LF F1 product details
- Nominal voltage: 6.0 V (3 cells)
- Nominal capacity: 5.0 Ah at 20-hr rate (4.3 Ah at 10-hr)
- Terminals: F1 quick-disconnect tab (0.187″ / 4.75 mm)
- Chemistry: AGM sealed lead acid (VRLA), maintenance-free
- Case: ABS (UL94 HB; V-0 available)
- Dimensions: 2.64 in (L) × 2.64 in (W) × 3.94 in (H) (67 × 67 × 100 mm)
- Approximate weight: 1.8 lb (0.8 kg)
- Operating temperature: charge -4°F to 104°F (-20°C to 40°C); discharge 5°F to 122°F (-15°C to 50°C)
- Approvals: UL Recognized, UN2800 non-spillable; consult Power-Sonic for current detail
Typical applications
Specifically, common uses include emergency lighting heads, exit signs, small fire/security backup, and signaling equipment. Finally, confirm fit against the current Power-Sonic PS-650LF datasheet before ordering. Specifically, the LF form factor is distinct from the related PS-650LS variant.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.8 lbs |
|---|---|
| Dimensions | 2.64 × 2.64 × 4.64 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Replacement Part |
