The Potter Electric Signal PSN-1000 is an intelligent 10-amp notification power expander and P-Link repeater. First, the unit connects to the host fire alarm control panel through the P-Link RS-485 bus. Then, the host panel programs and supervises the PSN-1000 over that link. As a result, integrators add NAC capacity remotely without losing panel-level visibility.
Potter Electric Signal PSN-1000 outputs
The PSN-1000 provides six (6) Class B notification outputs. Alternatively, integrators configure it as three (3) Class A circuits. Specifically, each output is regulated, power-limited, and rated at 3 amps maximum. In addition, the PSN-1000 has two (2) programmable dry contact inputs. Furthermore, the dry contact inputs are Class B and supervised.
Each output is independently configurable. Specifically, options include Quadrasync strobe sync, constant power, ANSI Temporal Code 3, and pass-through pattern matching. Quadrasync covers Potter/AMSECO, Gentex, Cooper/Wheelock, and System Sensor strobes.
System architecture
The PSN-1000 may be installed up to 6,500 feet from the host control panel. Furthermore, the PSN-1000 repeats the P-Link communication for another 6,500 feet downstream. Therefore, system designers reach far-flung notification zones without dedicated home-run wiring.
Up to 31 power supplies per control panel are supported. In addition, the PSN-1000 supports system-wide synchronization across all power supplies. As a result, large-system strobes stay in cadence panel-wide.
Verified specifications
- Size: 16-3/4″ H x 16-1/8″ W x 3-1/2″ D (PSN-1000 standard cabinet)
- Enclosure: 16-gauge sheet steel with hinged locked door
- Power input: 120 VAC at 50/60 Hz or 240 VAC at 60 Hz
- Max AC draw: 5.1 A at 120 VAC / 3.0 A at 240 VAC
- Standby current: 60 mA
- Alarm current: 200 mA
- Output: 24 VDC regulated
- Battery cabinet capacity: 18 AH internal
- External battery charging capability: up to 55 AH
- Operating temperature: 32°F to 120°F, 93% humidity non-condensing
- Compatible panels: IPA Series, AFC/ARC Series, PFC-4064 (also legacy P Series and PFC-6000 Addressable)
- Listings: UL Listed
- Stock number: 3992662 (PSN-1000 standard cabinet)

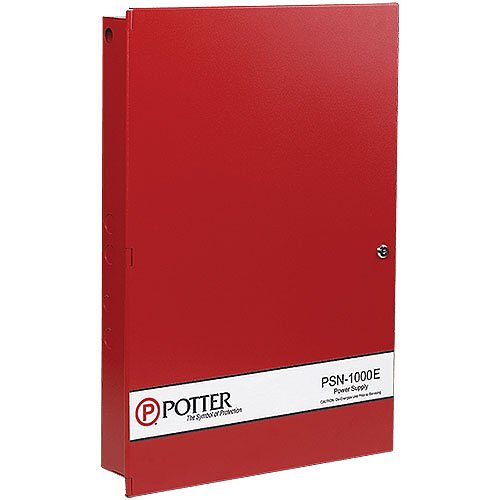

Note: For installations needing space for the Stacker Bracket and SLCE-127 loop expander, see the larger-cabinet PSN-1000E (stock 3992665).
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 21.36 lbs |
|---|---|
| Dimensions | 5 × 17 × 17 in |
| Condition | New |
| Manufacturers | Potter |
| Part Type | Power Supply |
