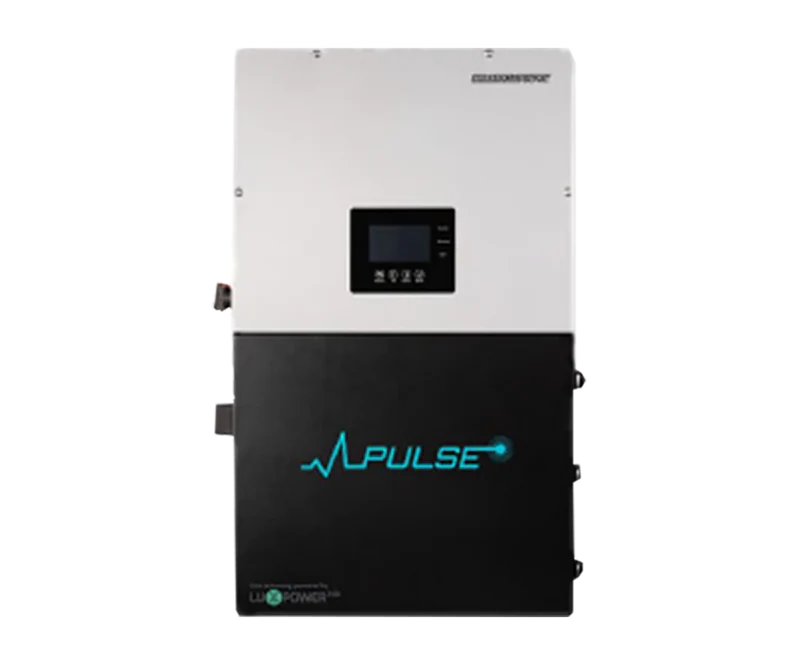

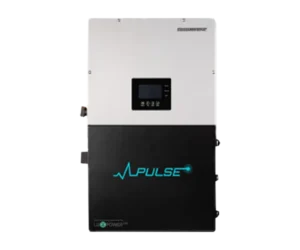

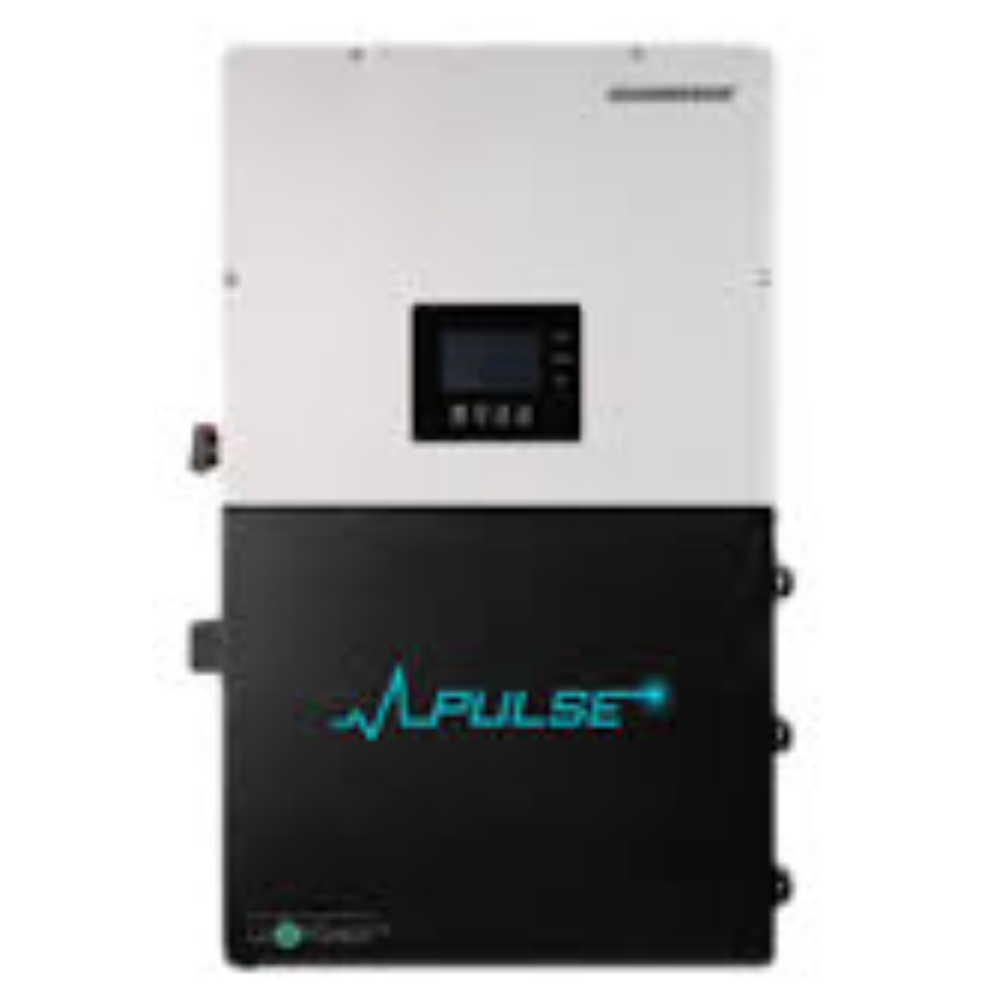

Power Sonic (PULSE-INV-12K-LXP) 12LW 2PH Inverter

The Power Sonic PULSE-INV-12K-LXP is a 12 kW split-phase (two-phase) wall-mounted hybrid inverter. Specifically, it is the inverter half of the Power-Sonic Pulse residential energy storage system. First, it manages charge and discharge for 1 to 15 PULSE-ES-5K battery packs. Then, it delivers whole-home backup with under-10 ms transfer switching during a grid outage.

How the Power Sonic PULSE-INV-12K-LXP is used

Therefore, installers pair this inverter with one or more PULSE-ES-5K LiFePO4 packs to build a residential or small-commercial ESS. Also, the inverter supports grid-tied, off-grid, and hybrid configurations. In addition, it handles peak shaving, load shifting, and sell-back to grid where utility tariffs allow. As a result, homeowners get backup, daily energy management, and solar coupling in one unit.

PULSE-INV-12K-LXP product details

• Rated power: 12 kW continuous output, split-phase (2-phase) AC
• Battery compatibility: 1-15 Power-Sonic PULSE-ES-5K LiFePO4 packs (5.12-76.8 kWh total)
• Transfer switch time: under 10 ms (grid to backup)
• Interface: color touchscreen plus WiFi-connected mobile app
• Enclosure rating: IP65 (indoor or outdoor installation)
• Dimensions: 11.2 in (L) × 20.5 in (W) × 34.2 in (H) (284 × 521 × 869 mm)
• Approximate weight: ~97 lb (44 kg)
• Listings: ANSI, IEC, UL, UN 38.3 (per Power-Sonic / Battery Junction listing)
• Installation: must be performed by a licensed electrician

Typical applications

Specifically, the PULSE-INV-12K-LXP is intended for residential and small-commercial whole-home backup power, peak shaving, and solar-coupled energy storage. Also, this inverter is NOT a fire alarm system component — it is a whole-home power conversion and management device. Finally, confirm electrical code, AHJ, and utility interconnection requirements with a licensed installer before ordering.
