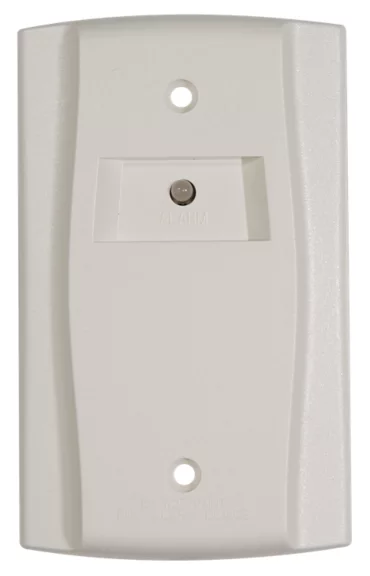

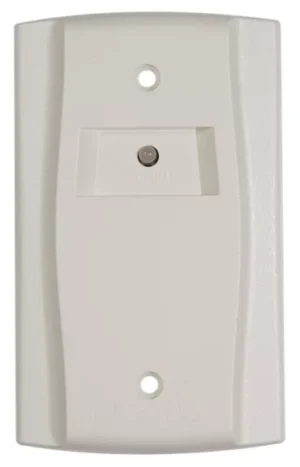

The System Sensor RA100Z is a remote LED annunciator for fire alarm systems. Its red LED gives a visual indication of an alarm condition. As a result, staff can see alarm status away from the detector or panel.
About the System Sensor RA100Z
First, the RA100Z mounts to a single-gang electrical box. Then it connects to a compatible initiating device or panel. Therefore, you can place alarm indication where it is easy to see.
In addition, the RA100Z works with both conventional and intelligent systems. For conventional use, you install the provided jumper. However, you must observe wiring polarity at the “+” and “–” terminals.
Key Details
- Remote red LED annunciator
- Indicates an alarm condition visually
- Works with conventional and intelligent systems
- Intelligent voltage range: 18–32 VDC
- Maximum current draw: about 10 mA
- Mounts to a single-gang electrical box
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.3 lbs |
|---|---|
| Dimensions | 6 × 3.5 × 2.3 in |
| Condition | New |
| Manufacturers | System Sensor |
| Part Type | Strobe |
