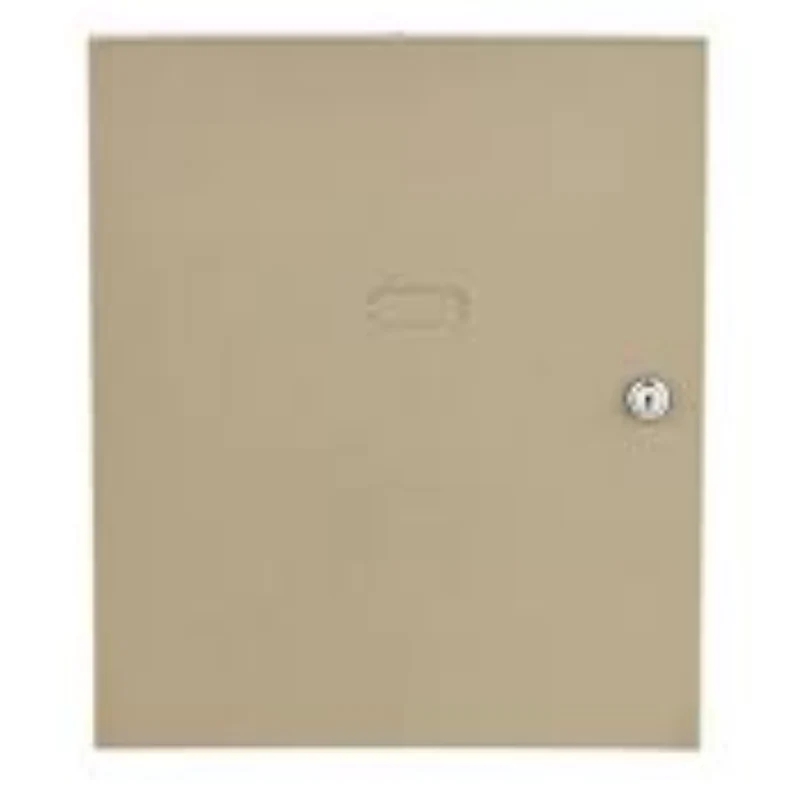

The Resideo VISTA-20P is a professional-grade expandable control panel designed for comprehensive fire alarm and security system integration in commercial and institutional environments. This robust 8-zone panel provides sophisticated monitoring capabilities for facilities ranging from small offices to mid-sized commercial complexes, delivering reliable zone expansion and advanced detection functionality.
Engineered for complex fire detection requirements, the VISTA-20P supports multiple input types and communication protocols, making it ideal for retrofit installations and new construction projects. Its modular design enables seamless integration with existing building management systems, HVAC interfaces, and emergency notification networks while maintaining strict compliance with NFPA 72 fire alarm and signaling code standards.
Key Features
- Expandable 8-zone control panel supporting hardwired and wireless detection devices
- Compatible with addressable and conventional fire detection systems
- Built-in communication modules for central station and remote monitoring
- UL 268 and UL 464 listed for comprehensive fire safety performance
- Advanced programming capabilities with multiple access levels and event logging
- Low-voltage design supporting standard 12VDC power requirements
Specifications
- Input Voltage: 16.5VAC, 40VA transformer
- Battery Backup: 12VDC, 4-7Ah recommended
- Operating Temperature: 32°F to 120°F (0°C to 49°C)
- Dimensions: 8.5″ x 6.5″ x 2.25″ (panel only)
- Zone Resistance: End-of-Line 1kΩ supervision
Typical installation contexts include commercial office buildings, educational facilities, healthcare complexes, and light industrial environments requiring robust fire detection and monitoring capabilities. The VISTA-20P’s versatile architecture supports seamless integration with smoke detectors, heat sensors, manual pull stations, and notification appliances across multiple zones.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 7.7 lbs |
|---|---|
| Dimensions | 15.5 × 13 × 4 in |
| Condition | New |
| Manufacturers | Resideo |
| Part Type | Replacement Part |
