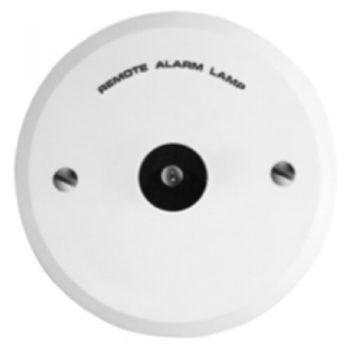

The Siemens RLI-1 is a remote alarm lamp with a single red LED on a round plate. First, it provides remote visual indication for an initiating device. As a result, staff can spot an alarm where the device itself is out of view. Then responders can find the source faster.
Siemens RLI-1 Mounting and Power
The RLI-1 mounts on a standard 4-inch octagon conduit box. Therefore, it installs cleanly with common hardware. In addition, it runs on a wide voltage range with very low current. Also, the companion RLI-2 mounts on a single-gang switch box.
Specifications
- Remote alarm lamp, red LED, round plate
- Operating voltage: 7 to 27 VDC at 1 to 5 mA
- Mounts on a standard 4-inch (10.2 cm) octagon conduit box
- UL 864 (9th edition) listed for indoor dry locations
- Operating range: 32°F to 120°F, up to 93% relative humidity
- Part number: 500-390673
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 0.1 × 10 × 7 in |
| Condition | New |
| Manufacturers | Siemens |
| Part Type | Module |
