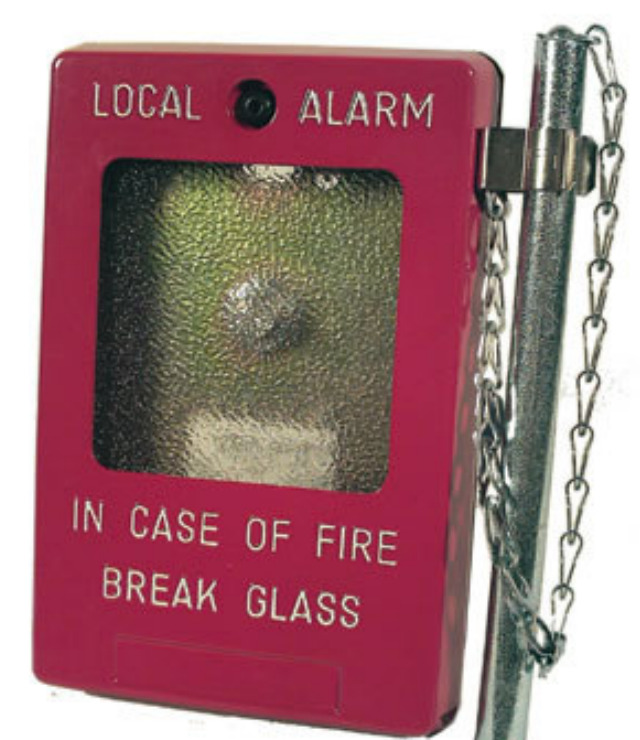

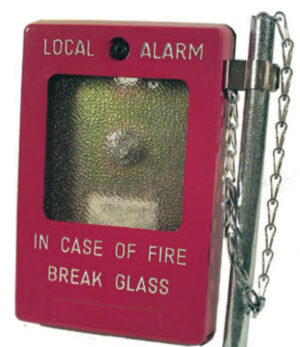

RSG NC-S2 Break Glass Fire Alarm Station
The RSG NC-S2 is a double pole normally-open break glass fire alarm station with hammer and chain from the RSG/Aames Security NC Series. This station provides reliable manual fire alarm activation with the added security of a break glass element — the glass must be broken before the alarm can be triggered, preventing accidental or malicious false alarms.
Key Features
- Double pole normally-open contact configuration
- Die-cast metal construction for durability
- Includes hammer and chain for emergency glass breaking
- Break glass element prevents accidental activation
- Manufactured in the U.S.A.
- Visual indication — broken glass confirms intentional activation
Compatible Accessories
- NC-BB — Die cast surface mount back box
- NC-BB-N — Steel surface mount back box
- NC-BGC — Break glass cover enclosure
- NC-GL-N — Replacement glass panel (2.837 x 2.570)
The double pole configuration provides two independent circuits, suitable for systems requiring separate alarm and supervisory circuits or dual-zone monitoring.
Questions? Contact Life Safety Consultants at (888) 557-0558 or email sales@lifesafetycom.com
Browse our full selection of Pull Station Replacement Parts.
The RSG NC-S2 break glass pull station ships in 5–10 business days from Life Safety Consultants — your trusted source for RSG/Aames Security fire alarm components since 2002.
Compliance & Standards
The RSG RMS Series manual pull stations are listed and labeled in accordance with UL 38 (Manually Actuated Signaling Boxes) and ULC S527, meeting the requirements of NFPA 72 (National Fire Alarm and Signaling Code) for manual fire alarm initiating devices. Suitable for use in new construction and retrofit applications in commercial, industrial, institutional, and high-rise residential occupancies. Compatible with all UL Listed fire alarm control panels operating on standard 24V initiating device circuits (IDC). Meets ADA requirements for activation force and mounting height when installed per manufacturer specifications.
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 4.75 × 3.25 × 1.1 in |
| Part Type | Die Cast Metal, Manual, Pull Station |
| Condition | New |
| RMS Station Options | GCS (Gold Contact), KL (Key Lock), KO (Key Operated), KS (Key Switch), PS (Pre-Signal), DAH (Break Glass Adapter), LP (Lift and Pull Cover), LPA (Lift and Pull + Agent Release), LP/NY (Lift and Pull + NY Stripe) |
