The Siemens PAD5-9A is a complete 9A PAD-5 addressable power-supply kit. It powers notification appliances on Siemens fire alarm systems. First, the kit ships ready to mount and wire. As a result, installers save assembly time on commercial jobs.
What the Siemens PAD5-9A kit includes

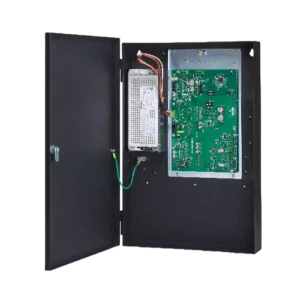

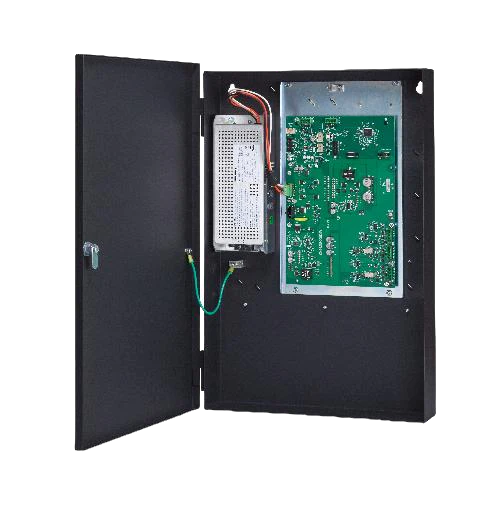

This kit bundles three core components. First, it includes one black unit enclosure. Then it adds one PAD-5-MB main board with an adapter plate. Finally, it provides one 300W power supply, model FP2012-U1. Together, these parts deliver up to 9A of usable power.
Outputs and power
The PAD-5 power supply provides 24 VDC output. In addition, it supplies 3A of auxiliary power. It drives four Class B or two Class A notification circuits. Furthermore, you can expand it with the PAD-5-CLSA card. That card adds four more Class B or two more Class A circuits.
Panel connection and listings
The PAD-5 connects to a Siemens Modular FACP through an XDLC device loop card. Therefore, it reports as a P2 addressable device. Technicians program it with the Siemens DPU programmer. Also, the unit is UL 864 10th Edition and ULC-S527 Listed. Finally, it complies with the Americans with Disabilities Act (ADA).
Questions about the Siemens PAD5-9A? First, call Life Safety Consultants at 1-888-557-0558. Alternatively, email sales@lifesafetycom.com. Then our team will confirm the right kit for your system.
Additional information
| Weight | 21.35 lbs |
|---|---|
| Dimensions | 15 × 15 × 15 in |
| Condition | New |
| Manufacturers | Siemens |
| Part Type | Speaker |
