The Siemens ZU-35TS is a dual zone module for the legacy Siemens (Cerberus Pyrotronics) System 3 fire alarm panel. Its part number is 500-885420. Life Safety Consultants supplies this module reconditioned, with a one-year warranty.
The module supervises two initiating circuits. When a detector or shorting-type device operates, the module locks into alarm. The panel then starts its programmed sequence. For example, that can include sounding audibles, operating alarm transmitters, closing doors, shutting down fans, and recalling elevators.

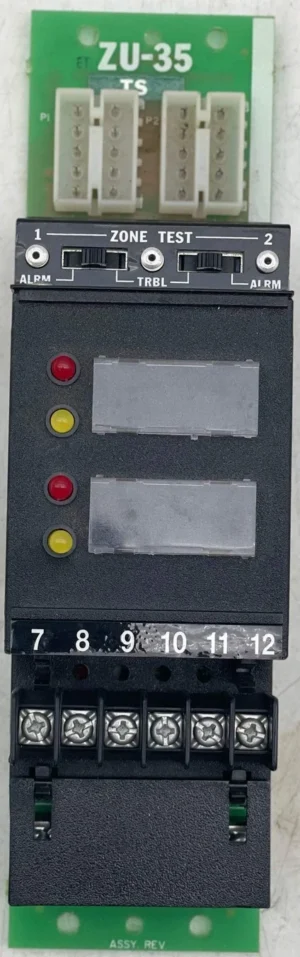

Siemens ZU-35TS test switches
The “TS” version adds a 3-position momentary test switch for each zone. Center is the normal position. One side position tests the zone trouble signal. The other side tests a zone alarm signal. Notably, these switches are a requirement for US Coast Guard approval on marine systems.
Installation
The module occupies one module space in the System 3 rail structure. It interconnects through a ten-pin plug and harness assembly. Therefore, swapping a failed module is a rail-and-harness job, not a rewiring project.
Key facts
- Part number: 500-885420
- Two supervised initiating zone circuits
- 3-position momentary test switch per zone (trouble / normal / alarm)
- UL Listed, FM approved, and US Coast Guard approved
- Operating temperature: 0°C to 49°C (32°F to 120°F)
- Condition: reconditioned with one-year warranty
Order the Siemens ZU-35TS from Life Safety Consultants
Keeping a System 3 panel alive? We stock legacy Siemens parts. Call 1-888-557-0558, or email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 2 × 4 × 1.5 in |
| Condition | Reconditioned w/ one year warranty ! |
| Manufacturers | Siemens |
| Compatible Panels | Siemens System 3 |
| Compatible Bases | N/A |
| Cross Reference | 500-885420, ZU-35TS, ZU35TS |
| Two supervised initiating circuits; 3-position test switch per zone; Class A or Class B wiring; LED indicators per zone; US Coast Guard approved; UL listed; FM approved; 0-49 deg C; Dimensions | 2x4x1.5 in, Weight: 1 lb |
