The SigCom DVS-RM/B is a supervised remote microphone for SigCom VECP series voice evacuation systems. It works with the VECP-25 and VECP-50 control panels.
The microphone can be located up to 100 feet from the VECP panel. From there, authorized staff can page live through the system’s speakers. Moreover, the live voice overrides the prerecorded message and alert tones.
SigCom DVS-RM/B supervision
Both the microphone and its interconnecting wires are supervised. If a fault occurs, the control board’s System LED lights. In addition, the Remote Mic Fault LED lights. Therefore, a wiring problem shows up at the panel instead of hiding until an emergency.
Enclosure

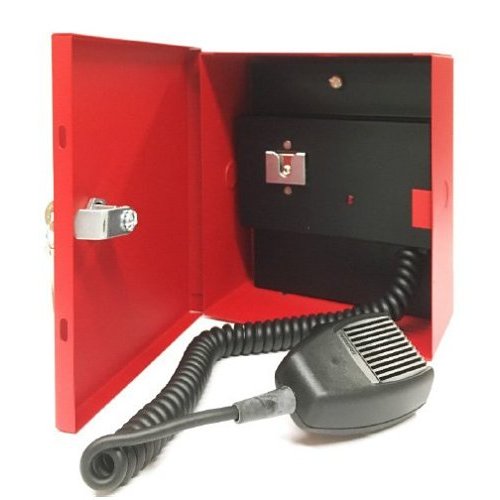

The DVS-RM/B ships in a surface-mounting steel enclosure. The hinged cover locks with a key. As a result, the microphone can sit in an entryway while staying restricted to authorized personnel.
Key facts
- Compatible panels: SigCom VECP-25 and VECP-50
- Maximum distance from panel: 100 feet
- Function: live paging with override of prerecorded messages and alert tones
- Supervision: microphone and wiring, with System and Remote Mic Fault LED indication
- Enclosure: surface-mount steel with key-locking hinged cover
Order the SigCom DVS-RM/B from Life Safety Consultants
Adding a remote mic to a VECP system? Call 1-888-557-0558, or email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Browse Related Products
Additional information
| Weight | 5.5 lbs |
|---|---|
| Dimensions | 9 × 14 × 10 in |
| Condition | New |
| Manufacturers | SigCom |
| Part Type | Replacement Part |
| Compatible Panels | SigCom VECP series |
| Compatible Bases | VECP-25, VECP-50 |
| Cross Reference | VECP-25, VECP-50 |
| Specification | Supervised (line fault monitoring), remote microphone, black finish |
