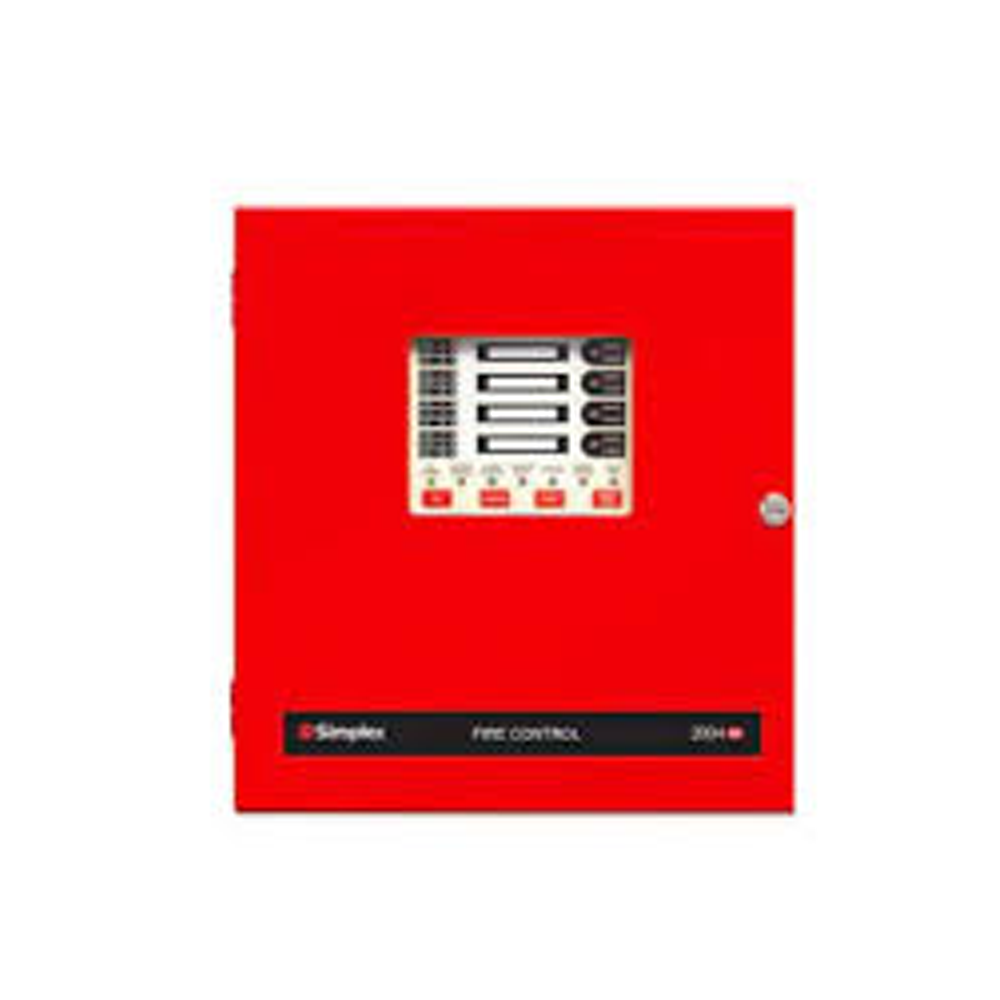

The Simplex 2004-9101 power supply is a conventional fire alarm control panel with four Class B initiating device circuits (IDCs) and one notification appliance circuit (NAC).
First, the panel monitors four independent Class B IDC zones for initiating devices. Then it drives one NAC for horns, strobes, or other notification appliances. In addition, the NAC can be wired Class B or Class A. Therefore, installers can match the panel to either supervised or supervised-with-return circuit requirements.
What the Simplex 2004-9101 Power Supply Provides
The unit includes a 3-amp power supply with an integrated battery charger. As a result, the panel can power compatible field devices and maintain standby batteries without an external supply.
IDC Capabilities
Each of the four Class B IDCs has individual zone disable. Also, the IDCs can monitor two-wire initiating devices, including Simplex TrueAlarm two-wire smoke detectors.
Specifications
- IDCs: 4 Class B with individual zone disable
- NAC: 1 circuit, Class B or Class A
- Power supply: 3 A with integrated battery charger
- Detector support: two-wire devices including Simplex TrueAlarm two-wire smoke detectors
- Family: 2004FS Fire Alarm Control Unit
Order or Get Application Help
Since 2002, Life Safety Consultants has supplied Simplex conventional fire alarm parts. To order the Simplex 2004-9101 or confirm device compatibility, call 1-888-557-0558. You can also email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 13.5 lbs |
|---|---|
| Dimensions | 21 × 20 × 9 in |
| Condition | New |
| Manufacturers | Simplex |
| Part Type | Power Supply |
