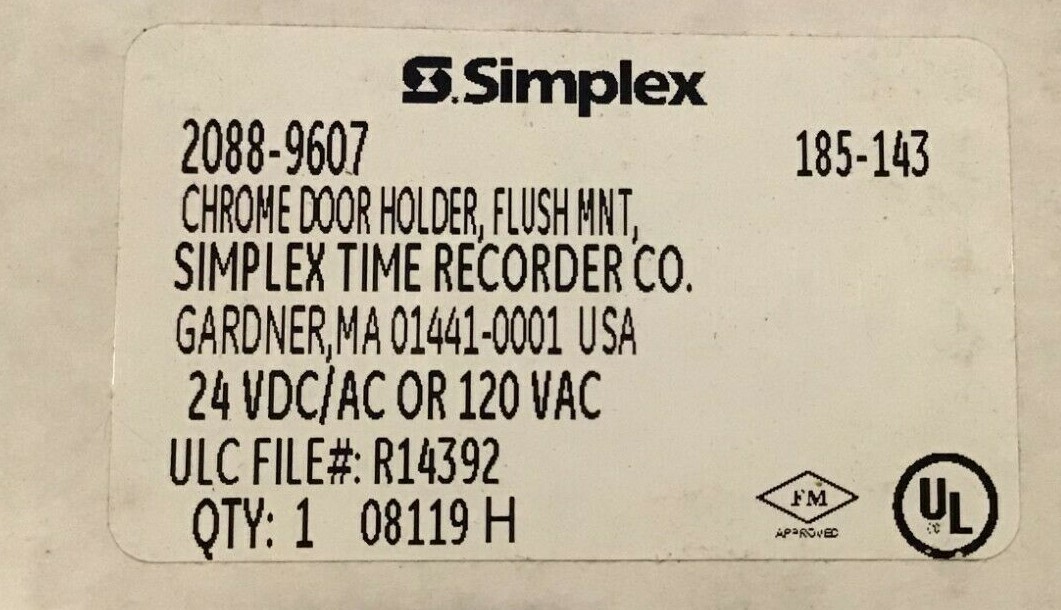

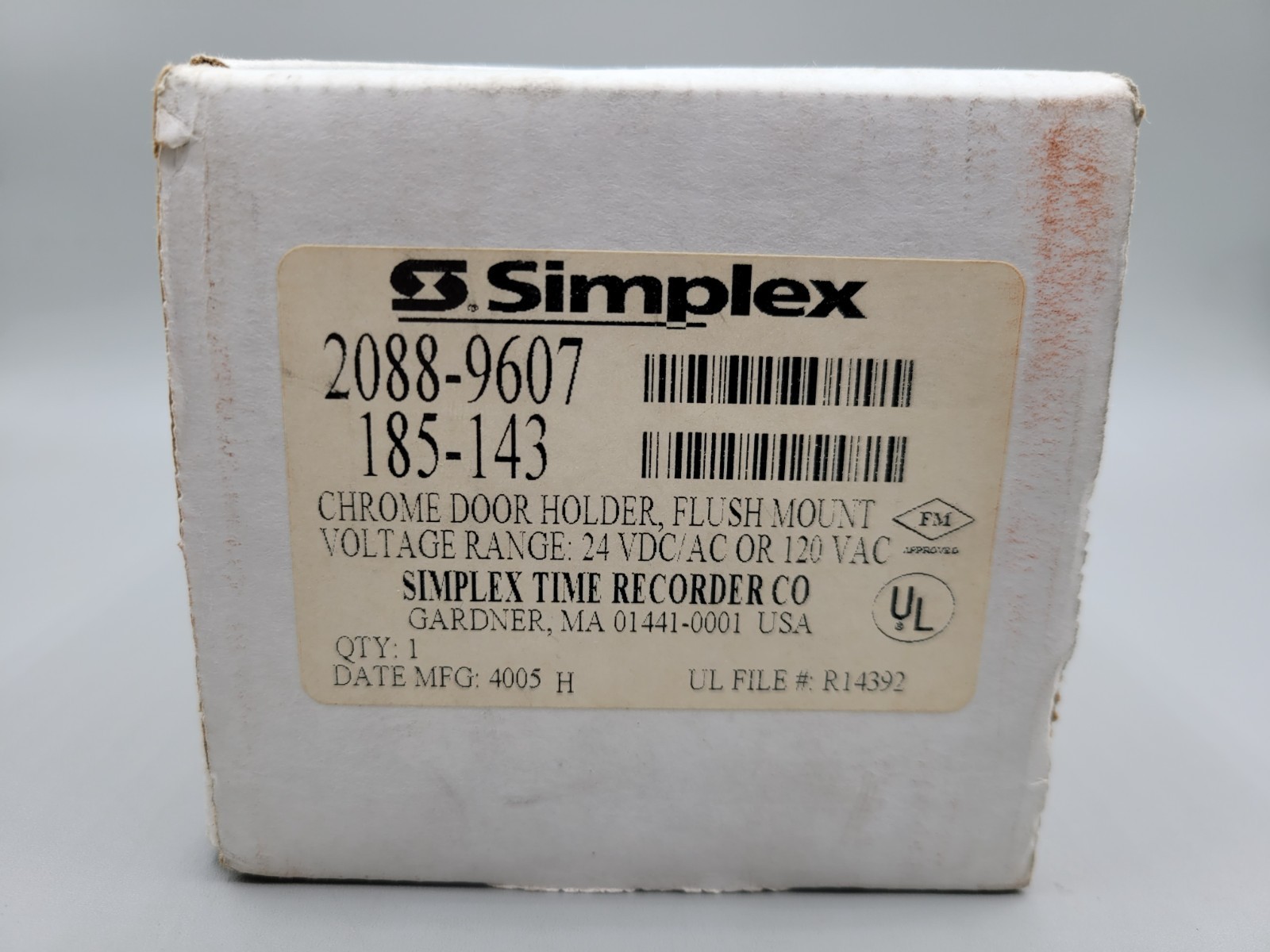

The Simplex 2088-9607 flush mount electromagnetic door holder operates on 24 VDC, 24 VAC, or 120 VAC with a current draw of 15 mA at rated voltage. Designed for low-profile applications where the magnet mounts flush to the wall, the 2088-9607 includes the magnet assembly, catch plate, decorative cover, and a 3″ (76 mm) chrome extension rod. Minimum holding force is 25 lbs. An internal full-wave rectifier provides switching transient suppression and enables both AC and DC operation. UL Listed to Standard 228 and CSFM Approved (Listing 3550-0026:232). ULC Listed models carry a “C” suffix (2088-9607C).
Key Features
- Flush wall mount — low-profile installation
- 24 VDC, 24 VAC, or 120 VAC multi-voltage operation
- 15 mA current draw at nominal voltage
- 25 lbs minimum holding force
- Internal full-wave rectifier; AC or DC compatible
- Includes magnet, catch plate, cover, and 3″ (76 mm) chrome extension rod
- Self-adjusting swivel catch plate with two pivot points
- Three-position terminal block; 18 AWG wire lead, 9″ min
- Die-cast metal body; double chrome-plated finish
- UL Listed Standard 228; CSFM Approved; ULC Listed (2088-9607C)
Compatible Panels
Releases upon signal from any compatible Simplex fire alarm control panel including the 4100ES, 4010ES, 4020, 4005, and 4002 series.
Life Safety Consultants has supplied commercial fire alarm replacement parts since 2002. Reach us at 1-888-557-0558 or sales@lifesafetycom.com for help with the Simplex 2088-9607 or any door holder application.
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 8 × 3 × 3 in |
| Condition | New |
| Part Type | Door Holder |
| Manufacturers | Simplex |
| Compatible Panels | 4100ES, 4010ES, 4020, 4005, 4002 |
| Cross Reference | 185-143, DH24120RPC, DH24120RC |
| Voltage | 24 VDC / 24 VAC / 120 VAC, Current: 15 mA, Holding Force: 25 lbs min, Mount: Flush wall, Includes 3 in chrome extension rod, UL Listed Std 228, CSFM Approved |
