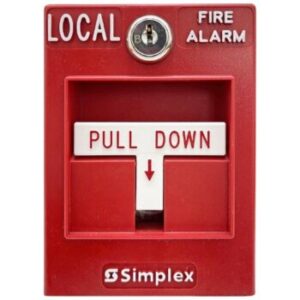

The Simplex 2099-9755 is a single-action, non-coded, non-addressable manual fire alarm pull station. It is designed for general-purpose conventional fire alarm applications.
First, an alarm activates with a single downward pull on the lever. Then the lever protrudes from the station face. As a result, responding personnel can see at a glance which station was activated.
How the Simplex 2099-9755 Operates
The pull station operates in compliance with ADA requirements. In addition, a break-rod is supplied for sites that require one; the break-rod is optional. Therefore, installers can configure the station to suit local AHJ preferences.
Reset and Security
The station includes a tamper-resistant reset key lock. Also, the lock is keyed the same as Simplex fire alarm cabinets, so existing site keys work for reset.
Wiring and Mounting
The station has screw terminals for wiring connections. For semi-flush mount, use a standard single-gang switch box, 2-1/5 in. (64 mm) deep. Alternatively, surface mount on a Wiremold V5744S box measuring 4-5/8 in. H x 2-7/8 in. W x 2-1/4 in. D (117 mm x 73 mm x 57 mm).
Specifications
- Type: single-action, non-coded, non-addressable manual station
- ADA compliant operating mechanism
- Break-rod: supplied; use is optional
- Lever: protrudes when alarmed
- Reset: tamper-resistant key lock, keyed same as Simplex cabinets
- Terminals: screw
- Semi-flush box: standard single-gang, 2-1/5 in. (64 mm) deep
- Surface box option: Wiremold V5744S
Order or Get Application Help
Since 2002, Life Safety Consultants has supplied Simplex 2099 Series pull stations. To order the Simplex 2099-9755 or compare single-action vs. dual-action models, call 1-888-557-0558. You can also email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.9 lbs |
|---|---|
| Dimensions | 4.8 × 5.1 × 4 in |
| Condition | New |
| Manufacturers | Simplex |
| Part Type | Pull Station |
