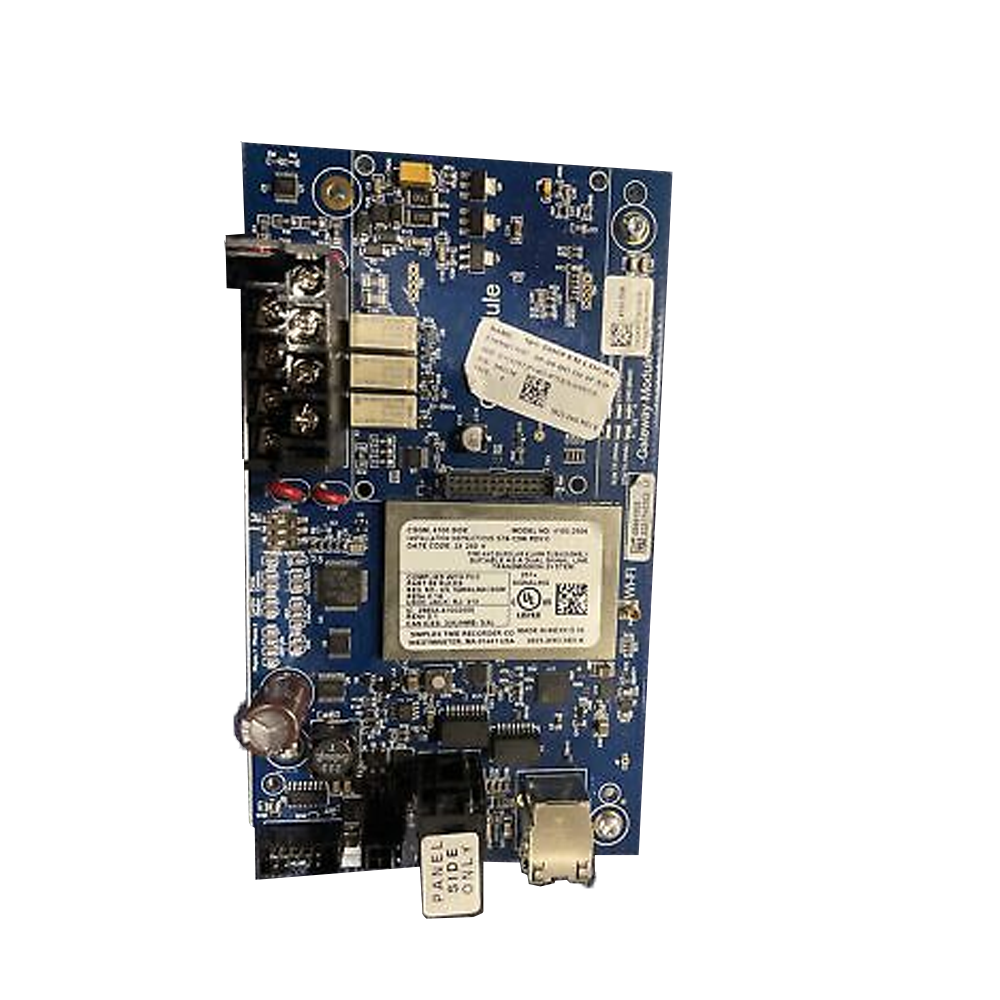

The Simplex 4010-2504 is a Connected Services Gateway with on-board IP communicator for the 4010ES platform. It links a fire alarm panel to a central station and to Simplex SafeLINC cloud services.
First, the card installs in a 4010ES panel and reports through the building’s IP network. Then it provides a documented migration path from older SDACT (digital dialer) installations. As a result, sites can drop the POTS lines and move signaling onto IP.
The card uses one block of option block space on the host panel. Therefore, integrators should confirm option-block availability before ordering. Furthermore, the unit is compatible with 4100ES, 4010ES, and 4007ES systems.
Simplex 4010-2504 Specifications
- Connected Services Gateway with on-board IP communicator
- Supervisory current: 125 mA
- Alarm current: 125 mA
- Footprint: 1 option block
- Compatible panels: 4100ES, 4010ES, 4007ES
- Provides a migration path for existing SDACT installations
Order or Get Application Help
Since 2002, Life Safety Consultants has supplied genuine Simplex 4010ES accessories. To order the Simplex 4010-2504 or confirm fit for your panel, call 1-888-557-0558. Also, you can email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2.5 lbs |
|---|---|
| Dimensions | 13 × 10.5 × 6 in |
| Condition | New |
| Manufacturers | Simplex |
| Part Type | Replacement Part |
