simplex (4098-9842), Simplex (4098-9842) Control Station for Stand Alone Duct Detector 0621152

Simplex (4098-9842) Control Station for Stand Alone Duct Detector 0621152

$119.25

SKU: 4098-9842 Brand:

Control Station

68 in stock

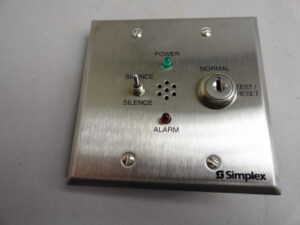

The Simplex 4098-9842 Remote Control Station is engineered for exclusive use with the Simplex 4098-9687 stand-alone duct detector. Required for proper system operation, the 4098-9842 provides the local operator interface for power indication, alarm annunciation, tone silencing, and keyed test/reset functions. This control station is ordered separately from the 4098-9687 duct detector housing.

Key Features

  • Red alarm LED for immediate alarm indication
  • Green power-on LED for normal operating status
  • Piezoelectric tone-alert for local audible alarm
  • Tone-alert silence switch to quiet local sounder after alarm
  • Keyed test/reset switch for Normal, Test, and Reset modes
  • Mounted on a stainless steel plate
  • Mounts in a standard double-gang box (3″ H × 4″ W × 2″ D / 76 mm × 102 mm × 51 mm)
  • Part number 0621152; datasheet S4098-0031

Compatible Detectors

The 4098-9842 is required for use with the Simplex 4098-9687 stand-alone duct detector. It is not designed for use with any other duct detector model.

Life Safety Consultants has supplied genuine Simplex fire alarm parts since 2002. To order the Simplex 4098-9842 or to confirm compatibility, call 1-888-557-0558 or email sales@lifesafetycom.com.

Additional information

Weight .25 lbs
Dimensions 5.5 × 5.5 × 5.5 in
Condition

New
Manufacturers

Simplex
Compatible Panels

4098-9687 (required companion detector)
Cross Reference

0621152
Mounting

Double-gang box 3in H x 4in W x 2in D (76mm x 102mm x 51mm), Indicators: Red alarm LED + green power LED, Tone: Piezo tone-alert with silence switch, Control: Keyed test/reset switch











Description

  • Stand-Alone Operation. Model 4098-9687 stand-alone duct detector housings with smoke detector are for applications that operate independent of a fire alarm control panel. They provide a TrueAlarm smoke detector for monitoring air conditioning or ventilating ducts. Sampling tubes are installed into the duct allowing air to be directed to the smoke detector mounted in the housing.
  • Remote Control Station 4098-9842 provides a red alarm LED, a green power-on LED, a piezoelectric tone-alert, a tone-alert silence switch, and a key switch for selecting normal operating mode or to initiate a test or reset operation. (This control station is required.)
  • Detector Operation. If an alarm is detected, the on-board relay contacts transfer, the control station tone-alert sounds, and the alarm LED illuminates. Activating the Silence switch will silence the tone-alert. After the source of the alarm is located and resolved, turning the key switch to Test/Reset will reset the detector.
  • Fail-Safe Relay Operation. The output relay contacts are held energized during normal operation. Upon loss of power or removal of the detector, the contacts will transfer.

Features

  • Compact stand-alone operation air duct detector housing with clear cover to monitor for the presence of smoke**
  • Includes factory installed TrueAlarm photoelectric smoke detector and features:
    • On-board TrueAlarm sensitivity drift compensation and dirt accumulation tracking
    • Multi-function status LED indicator on detector
    • Magnetic test that initiates an alarm and provides detailed diagnostic information
    • Clear cover allows visual inspection
    • Test ports provide functional smoke testing access with cover in place
    • Input power of 120 VAC, 24 VAC, or 24 VDC
    • UL listed to Standard 268A
  • On-board relay output features:
    • Fail-safe operation that is normally energized and transfers upon alarm, loss of power, or detector removal
    • Contacts are Form C, rated 5 A @ 120 VAC or 28 VDC, resistive
  • Operation requires Control Station 4098-9842:
    • Provides power-on LED, alarm LED, local tone-alert signal, local tone-alert silence, and keyed test/reset switch
    • Control station is ordered separately
  • Mounts to rectangular ducts or round ducts
    • Minimum size is 8” (203 mm) square or 18” (457 mm) diameter
  • Magnetically operated functional test:
    • Initiates alarm and displays dirt accumulation status using the detector status LED
    • Assists with maintenance priorities by categorizing detector status and identifying dirty detectors
  • Sampling tubes (ordered separately):
    • Available in multiple lengths to match duct size
    • Installed and serviced with housing in place
