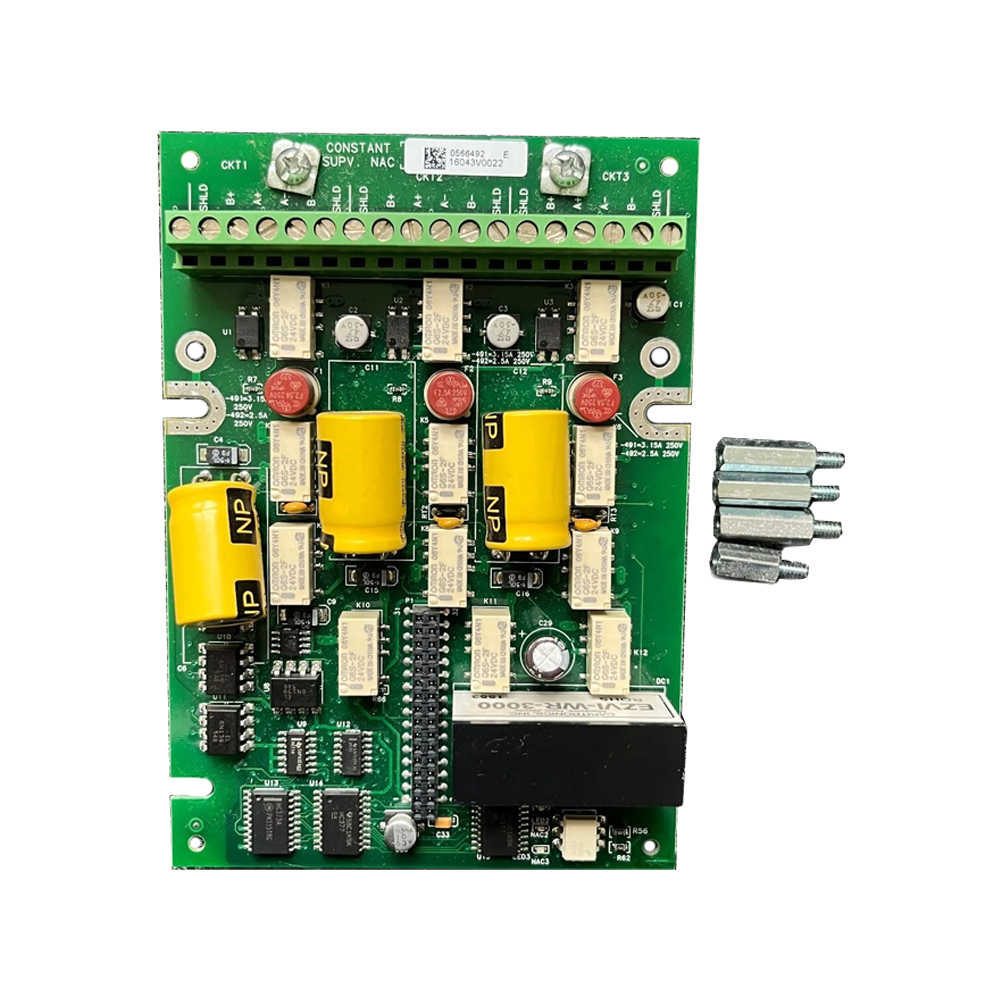

The Simplex 4100-1260 is a constant supervision adapter for 70.7 Vrms audio output. First, it monitors a 70-volt speaker circuit continuously. Then it reports any open or fault back to the panel. As a result, the audio notification circuit stays supervised at all times.
Simplex 4100-1260 constant supervision adapter features
The adapter card serves 70.7 Vrms notification appliance circuits. Specifically, it carries a NAC rating of 0.707 A, 50 W, or up to 100 speakers. In addition, it draws about 38 mA in supervision and 70 mA in alarm. Therefore it keeps real-time fault detection on the circuit.
This card supports voice and audio evacuation systems. Also, it helps maintain code-required supervision of speaker wiring. Furthermore, it integrates into existing Simplex amplifier configurations.
Compatibility
The 4100-1260 works within Simplex 4100-series fire alarm systems. Confirm the amplifier and speaker circuit details before ordering.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.8 lbs |
|---|---|
| Dimensions | 8.75 × 6 × 4.75 in |
| Condition | New |
| Manufacturers | Simplex |
| Part Type | Module |
