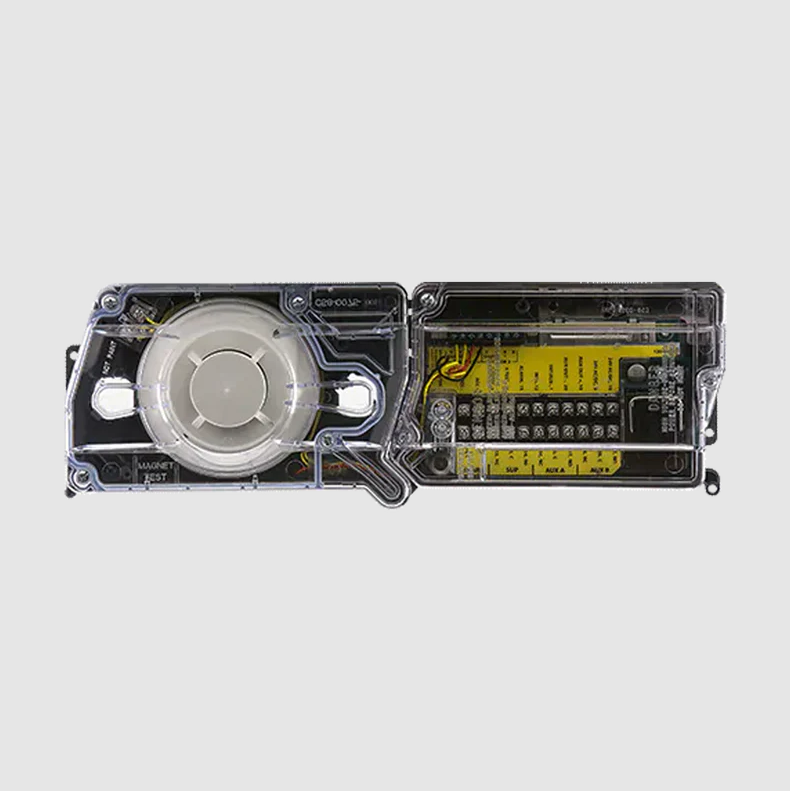

The System Sensor D4120 is an InnovairFlex 4-wire photoelectric duct smoke detector. First, it senses smoke inside HVAC ducts and air handlers. As a result, it can shut down air handling before smoke spreads through a building. In addition, the multi-voltage 4-wire design works on a conventional fire alarm system or as a standalone HVAC device. Specifically, a plug-in sensor head simplifies installation and testing.
System Sensor D4120 key features
- Pivoting InnovairFlex housing fits square or rectangular footprints.
- Plug-in photoelectric sensor head for easy service and better false-alarm immunity.
- Multi-voltage 4-wire operation for conventional panels or standalone HVAC use.
- Ample wiring space, a 3/4-inch conduit knockout, and built-in short-circuit protection.
- Controls up to 50 air handling systems when interconnected.
Operating conditions
The D4120 handles a wide range of duct environments. Specifically, it operates in airflow from 100 to 4,000 feet per minute. Also, it functions from -4°F to 158°F. Furthermore, it tolerates 0 to 95% humidity, non-condensing. Therefore, it fits demanding commercial and industrial ductwork.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 4 lbs |
|---|---|
| Dimensions | 16 × 6 × 4 in |
| Condition | New |
| Manufacturers | System Sensor |
| Part Type | Duct Detector |
