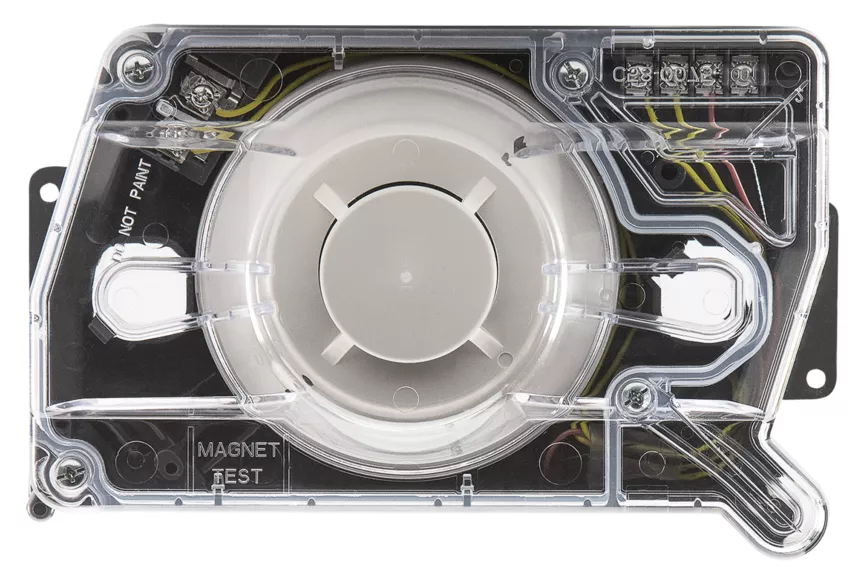

The System Sensor D4S is the 4-wire photoelectric sensor component for the InnovairFlex duct smoke detector line. Note that this is the sensor only. It works with the InnovairFlex 4-wire power board rather than as a standalone detector.
The D4120 duct detector’s power board offers 2:1 sensor-to-power capability. Therefore, one D4120 can monitor a second D4S sensor simultaneously — for example, supply and return sides of the same air handler. This saves hardware and wiring on multi-point duct detection jobs.
System Sensor D4S Key Features
- 4-wire photoelectric sensor component for InnovairFlex duct smoke applications
- Plug-in sensor head design for simple installation, testing, and maintenance
- Pairs with the D4120 power board (2:1 sensor-to-power capability)
- Operates in air velocities from 100 to 4,000 ft/min
- Operating temperature -4°F to 158°F; humidity 0-95% non-condensing
- Backward compatible with the InnovairFlex family and its remote test accessories
How the D4S Fits the InnovairFlex System
InnovairFlex detectors interconnect for multi-fan shutdown — up to 50 units. When one unit senses smoke, all interconnected detectors switch their relays. However, only the sensing detector goes into alarm, which pinpoints the source. Remote accessories include the RTS151 and RTS151KEY test stations and the RA100Z annunciator.
Order the System Sensor D4S from Life Safety Consultants
Life Safety Consultants stocks InnovairFlex duct detector components for HVAC and fire alarm contractors nationwide. To order the D4S sensor, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com for application help.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.6 lbs |
|---|---|
| Dimensions | 15 × 5 × 4 in |
| Condition | New |
| Manufacturers | System Sensor |
| Part Type | Duct Detector |
