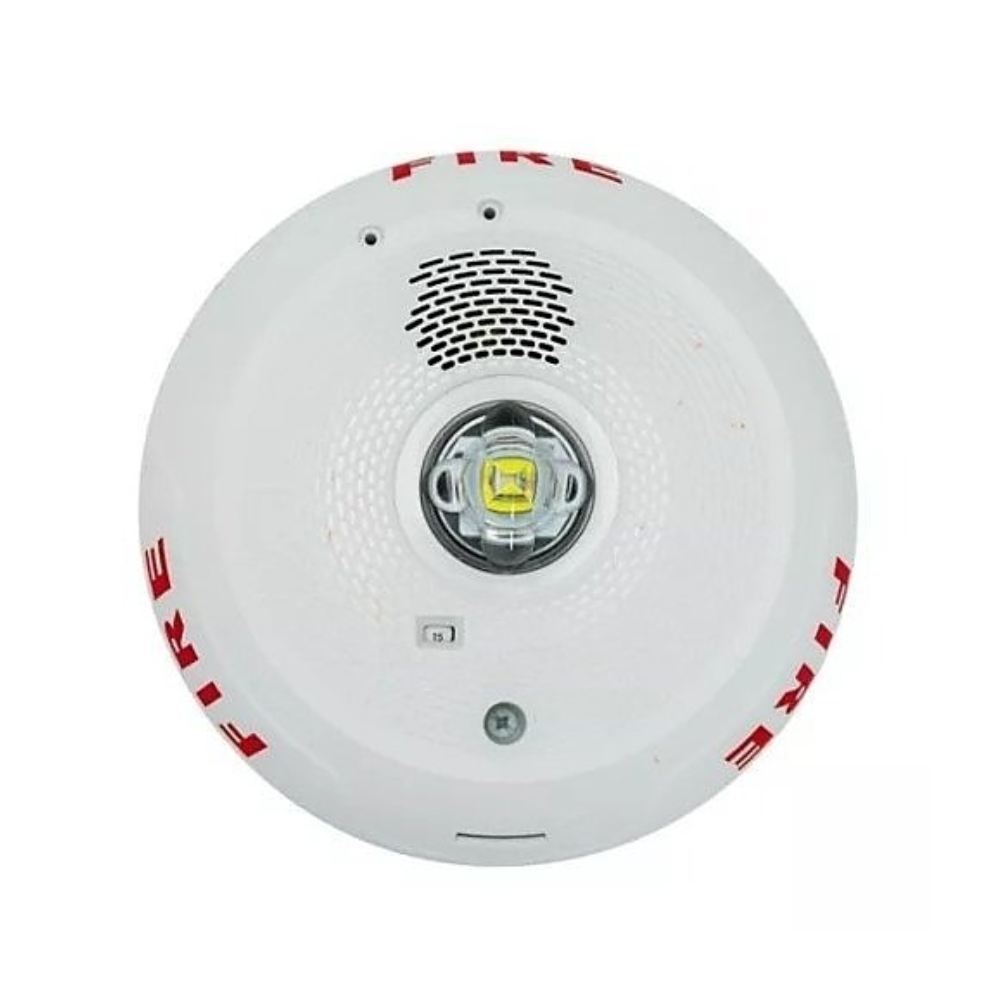

The System Sensor PC2WLED is a 2-wire LED horn strobe for ceiling mounting. It uses a white, “FIRE” marked housing for fire alarm notification. As a result, it provides audible and visual alerts from overhead.
LED technology lowers current draw compared with xenon strobes. Therefore, it simplifies notification circuit design. In addition, the PC2WLED stays electrically compatible with legacy SpectrAlert, SpectrAlert Advance, and L-Series devices.
System Sensor PC2WLED specifications
- Type: 2-wire LED horn strobe
- Operating voltage: 24 VDC
- Candela: multiple field-selectable settings
- Horn output: 88+ dBA at 16V
- Color: white, marked “FIRE”
- Mounting: ceiling
- Listings: UL 1971 (strobe), UL 464 (audible appliance)
The device works with most addressable and conventional notification circuits. Finally, it fits new construction and retrofit ceilings alike.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 8 × 7 × 4 in |
| Condition | New |
| Manufacturers | System Sensor |
| Part Type | Horn / Strobe |
