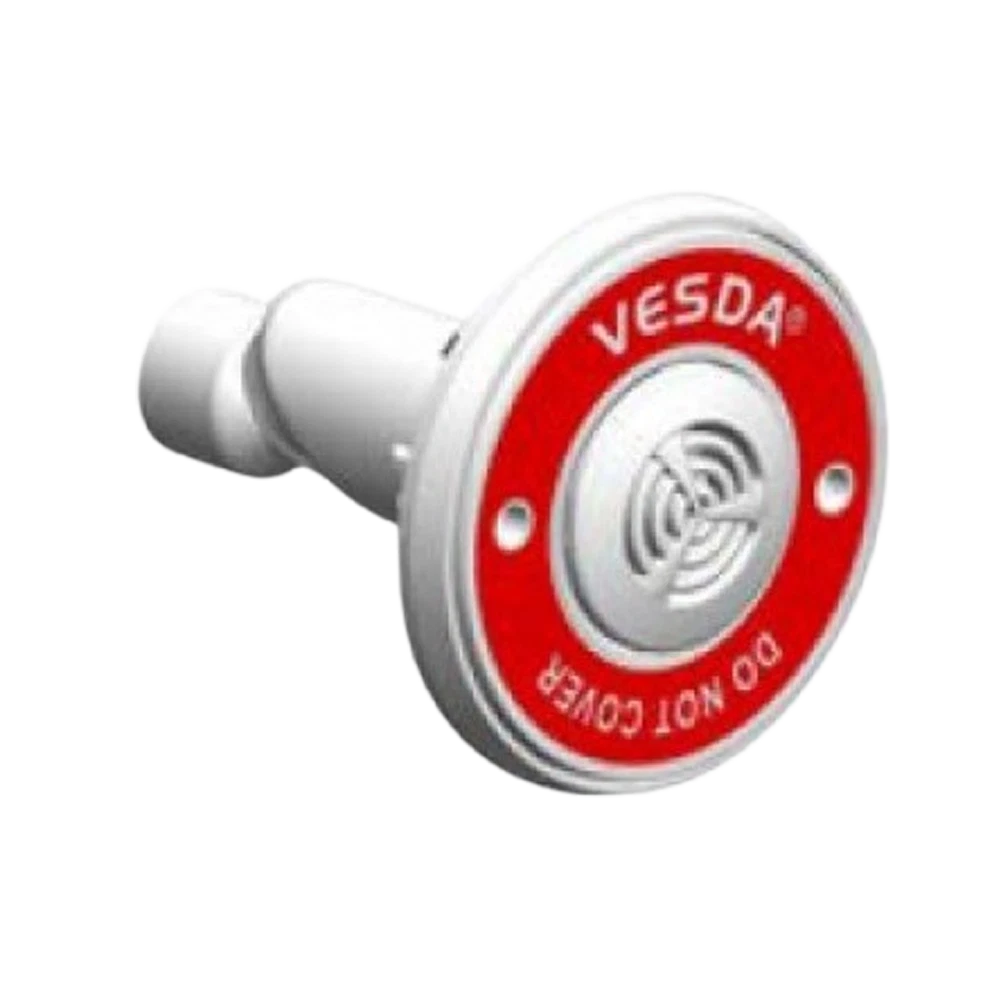

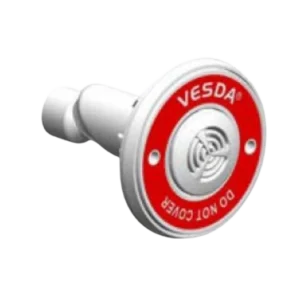

The Vesda VSP-980-W is a 6mm standard sampling point for VESDA-E VEA aspirating smoke detection systems. Specifically, it terminates a 6mm microbore tube at the protected ceiling. In addition, the sampling point’s white ABS housing blends into typical white-ceiling installations.
First, the VSP-980-W is used in ceiling-void microbore designs. Therefore, it suits offices, hotels, museums, and other architectural spaces where visible detectors are unwelcome.
How the Vesda VSP-980-W Works
First, microbore tubes route from the VEA detector through the ceiling void. Then, the sampling point exposes the tube end at the ceiling surface. As a result, air from the protected space enters the tube and travels back to the detector.
Furthermore, the sampling point’s inlet uses a swivel joint. Therefore, installers can orient the tube without forcing it into a tight bend.
In addition, each VEA sampling point is fully supervised by the detector end-to-end. As a result, broken tubes, blockages, or removed sampling points generate a fault at the panel.
Installation Options
- First, the sampling point can be directly screwed to the ceiling.
- Alternatively, it can be mounted with the retainer supplied as a standard inclusion.
- However, plan tube routing in the ceiling void before sampling-point placement.
- Finally, follow the VEA system designer’s per-point loading and tube-length limits.
Specifications
- Function: Standard sampling point for VESDA-E VEA aspirating detector
- Inlet diameter: 6 mm (for 6 mm VEA microbore tube)
- Color: White
- Material: ABS plastic
- Mounting: Direct ceiling screw or supplied retainer
- Supervision: End-to-end by VEA detector
- Pack: Sold individually (multi-pack variants available, e.g. VSP-980-W22)
Variants in the VEA Sampling Point Family
- VSP-980-W — 6 mm inlet, white (this product)
- VSP-981-W — 4 mm inlet, white
- VSP-982-B — 6 mm surface-mount, black
- VSP-983-W — 4 mm surface-mount, white
Therefore, confirm the tube diameter and ceiling color called out by your VEA system designer before ordering.
Order the Vesda VSP-980-W
Life Safety Consultants stocks VEA sampling points and microbore tube accessories. To confirm fit for your VEA design, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.0235 lbs |
|---|---|
| Dimensions | 1 × 1 × 3 in |
| Condition | New |
| Manufacturers | VESDA |
| Part Type | Replacement Part |
| Compatible With | VESDA VLP-002, VESDA VLP-006, VESDA VLC-500, VESDA VSP-980 detector |
| Material | ABS plastic / white |
| Color | White |
| Features | Aspirating smoke detection sampling pipe, Capillary tube fitting, VESDA compatible, Air sampling pipe |
