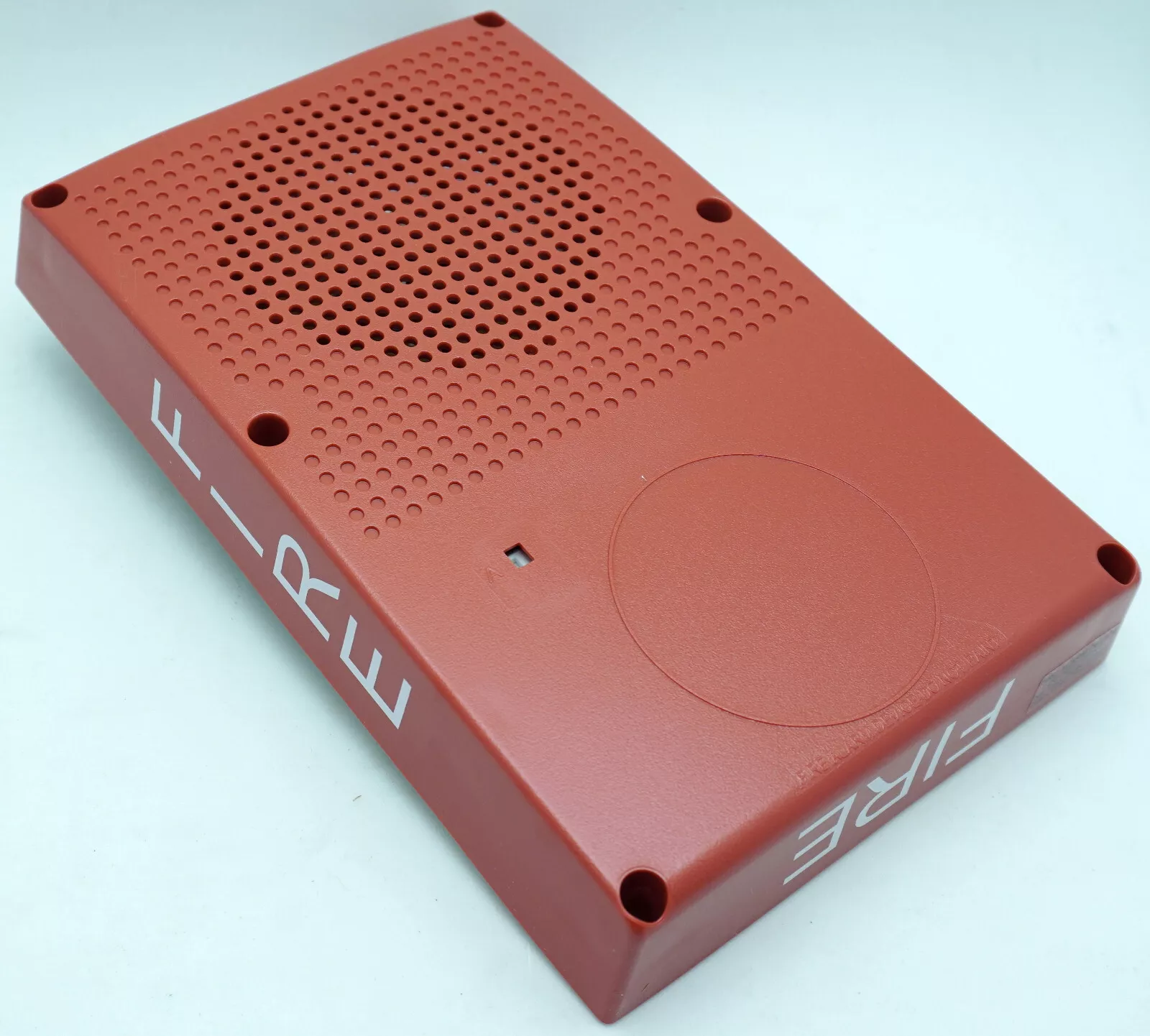

The Edwards WG4RF-S is an outdoor-rated Genesis speaker for fire alarm notification. It carries a red housing with FIRE marking, and it is a speaker-only appliance. Specifically, it delivers voice and tone signaling without a strobe. As a result, it suits zones that need audible notification outdoors or in wet areas.
Edwards WG4RF-S speaker output
This appliance uses an efficient mylar-cone loudspeaker for clear, intelligible sound. First, select 25 V or 70 V operation in the field. Then, set the wattage tap to 1/4, 1/2, 1, or 2 watts. Therefore, output ranges from 80.8 dBA up to 90.0 dBA. The settings stay visible through a sealed viewport after installation.
Specifications
- Type: speaker only (no strobe), red housing, FIRE marking
- Operating voltage: 25.2 V or 70.7 V, switch-selectable
- Power taps: 1/4, 1/2, 1, or 2 watts
- Sound output: 80.8 to 90.0 dBA
- Speaker response: 400 to 4,000 Hz
- Operating environment: -31 to 151°F (-35 to 66°C), 0 to 95% RH non-condensing
- Mounting: wall or ceiling, indoor or outdoor wet locations
- Agency listing: UL 1480
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2.5 lbs |
|---|---|
| Dimensions | 9.5 × 6 × 3 in |
| Condition | New |
| Manufacturers | Edwards |
| Part Type | Strobe |
