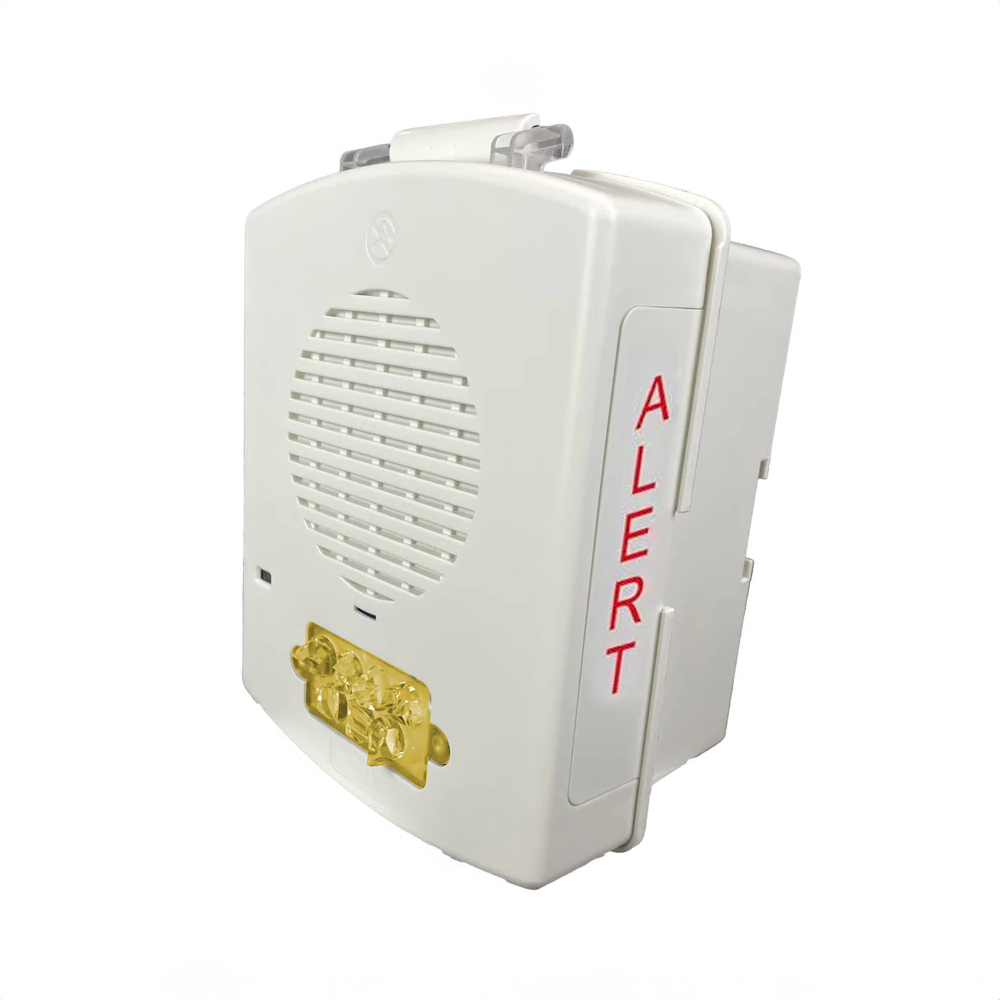

The Wheelock EL4XMTSTA-ALW is a NEMA 4X / IP66 rated outdoor multi-tone horn strobe. It comes from Eaton’s Eluxa weatherproof line and uses an amber lens. Specifically, this model joins an eight-tone horn with an amber LED strobe. In addition, the amber lens is certified for emergency warning under UL 1971. As a result, it suits mass-notification and fire alarm systems alike.
Amber Strobe and Multi-Tone Audible
The amber strobe offers six field-selectable candela settings: 15, 30, 75, 95, 150, and 177 cd. Installers set candela on site, so one model fits many layouts. In addition, the horn provides eight selectable tones for flexible signaling. Furthermore, the LED strobe flashes for 20 ms at one flash per second. The appliance runs on 16 to 33 VDC or FWR.
Heavy-Duty Weatherproofing
First, the NEMA 4X / IP66 enclosure resists corrosion, dust, and water jets. Therefore, it performs from -40°F to 150°F. The white UV-stabilized housing also resists sun fading. It mounts on a wall or ceiling.
Key Features (Wheelock EL4XMTSTA-ALW)
- Amber-lens LED strobe; six candela settings (15/30/75/95/150/177 cd)
- Amber lens certified for Emergency Warning per UL 1971
- Eight field-selectable horn tones in one device
- NEMA 4X / IP66 enclosure; -40°F to 150°F
- 16–33 VDC/FWR operation; 20 ms flash per NFPA 72 (2016)
- White UV-stabilized housing, ALERT lettering; wall or ceiling mount
Order the Wheelock EL4XMTSTA-ALW or Get Application Help
Since 2002, Life Safety Consultants has supplied genuine Eaton Wheelock notification devices. To order the Wheelock EL4XMTSTA-ALW or confirm compatibility, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2.2 lbs |
|---|---|
| Dimensions | 8 × 6.5 × 6 in |
| Condition | New |
| Manufacturers | Wheelock |
| Part Type | Strobe |
