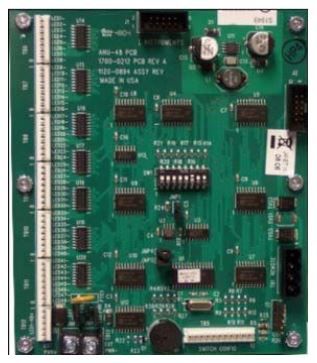

The Gamewell 1100-0503 is the ANU-48 LED driver module for remote annunciators. First, it drives up to 48 remote LEDs and 8 remote panel switches. In addition, it works with Gamewell-FCI E3 Series and S3 Series systems. As a result, it extends status indication to remote locations.
Gamewell 1100-0503 switch functions
Each switch is programmable to a predefined function. For example, it can act as a Speaker Circuit, Fire Fighter Phone, or Auxiliary Control switch. Therefore, integrators can tailor the annunciator to the site. Furthermore, the 48 LED outputs give clear remote status indication.
Electrical and applications
The module operates at 24 VDC and draws about 0.011 amp. Also, it functions in a 32°F to 120°F range. Specifically, it suits E3 Series voice evacuation, mass notification, and S3 Series panels. However, confirm panel compatibility before ordering.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 5.34 lbs |
|---|---|
| Dimensions | 10 × 9 × 4 in |
| Condition | New |
| Manufacturers | Gamewell-FCI |
| Part Type | Module |
