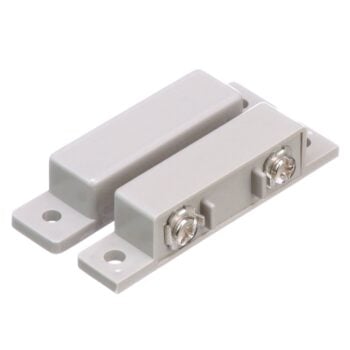

The Edwards 111-GY-06J1 is a 111-series reed contact switch. It uses a normally closed configuration. Also, it ships with a white housing and a Y-style actuator.
First, the reed switch mounts near its magnet. Then, magnetic field changes open or close the contact. As a result, the switch signals position or status to your circuit.
Edwards 111-GY-06J1 Ratings and Lead
This switch handles up to 0.3 amp maximum. Therefore, it suits low-current signaling circuits. In addition, it includes a jacketed 22/2 lead measuring 6 feet for flexible routing.
The Y actuator sets how the contact responds to the magnet. However, always match the actuator and current rating to your application.
Key Features
- 111-series reed contact switch
- Normally closed configuration
- 0.3 amp maximum current
- Jacketed 22/2 lead, 6 feet
- Y-style actuator, white housing
Order the Edwards 111-GY-06J1
Life Safety Consultants stocks Edwards reed switches and contacts. To order or check compatibility, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 5 × 5 × 1 in |
| Condition | New |
| Manufacturers | Edwards |
| Part Type | Strobe |
