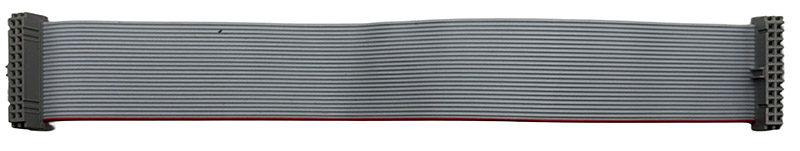

The Edwards 3-LCDXL1KBL is the factory cable kit required when mounting a 3-LCDXL1 large-format LCD display module inside a 3-6ANN or 3-10ANN base annunciator. Specifically, the cable connects the 3-ANNCPU3 annunciator CPU to the first annunciator support module.
The cable is ordered separately, one per 3-LCDXL1 install. However, it is not required when the 3-LCDXL1 mounts in a 3-4ANN four-position annunciator. As a result, the kit is sized for the longer internal cable runs of the larger 6- and 10-position annunciator cabinets.
3-LCDXL1KBL specifications
- Compatible host annunciators: 3-6ANN and 3-10ANN (not required for 3-4ANN)
- Connects 3-ANNCPU3 to the first 3-ANNSM annunciator support module
- Required quantity: one cable kit per 3-LCDXL1 large-format display

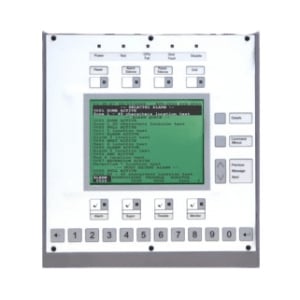

- Compatible display: 3-LCDXL1, 240 x 320 backlit, 24 lines of 40 characters
- Documented in Edwards data sheet 85010-0069, Issue 10
What this part is NOT
The 3-LCDXL1KBL is not a power supply cable. Furthermore, it is not the ribbon used by the smaller 3-LCD display. Therefore, do not substitute generic Edwards data ribbons for this cable kit.
Listings
The cable kit is a passive assembly. As a result, it carries no standalone agency listing. However, it becomes part of the UL 864-listed EST3 annunciator subsystem once installed with a listed 3-ANNCPU3, support modules, and host wallbox.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 5 × 1 × 0.1 in |
| Condition | New |
| Manufacturers | Edwards |
| Part Type | Power Supply |
