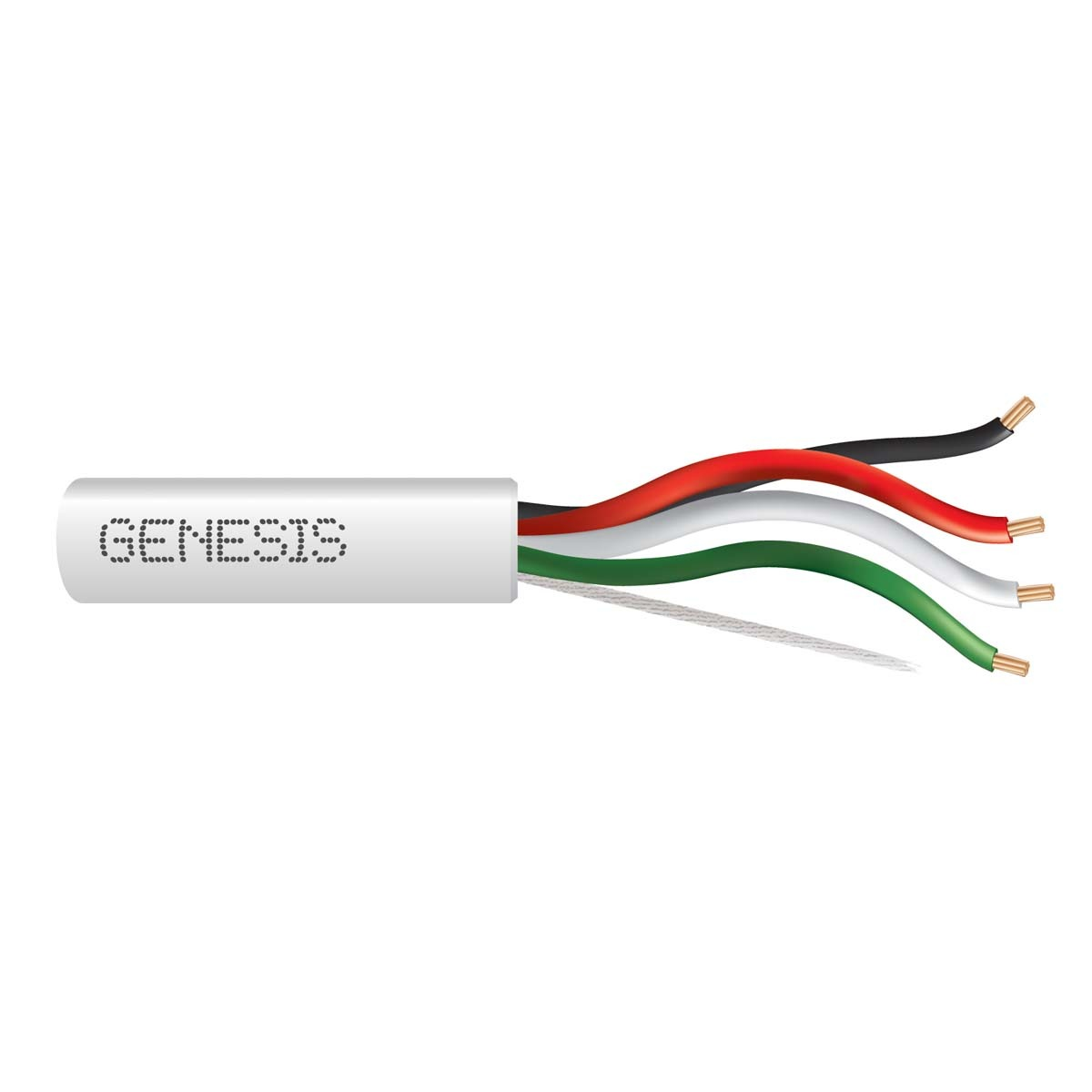

The Genesis 31041112 is a 22 AWG, 4-conductor stranded plenum cable from Southwire’s Genesis® line. It carries CMP, CL3P, and FPLP plenum listings. As a result, this cable suits security, audio, control, and power-limited fire-alarm circuits in air-handling spaces. The cable ships in a 1000-foot pull box with a natural-color low-smoke PVC plenum jacket.
Genesis 31041112 Specifications
The construction features bare copper stranded conductors with low-smoke PVC insulation. In addition, the outer jacket is plenum-rated PVC. Furthermore, the cable is rated for 300 volts maximum. Also, a rip cord and Countdown® length markings ease termination and inventory tracking. Overall jacket diameter is approximately 0.136″.
Listings and Standards for Genesis 31041112
This 22/4 stranded plenum cable carries the listings below:
- UL 444 — Communications Cables, Type CMP
- UL 13 — Power-Limited Circuit Cables, Type CL3P
- UL 1424 — Power-Limited Fire-Alarm Circuit Cables, Type FPLP
- NFPA 262 — Plenum flame and smoke test
- CSA C22.2 No. 2556 — FT6 plenum flame test
- RoHS compliant
Installation Notes
First, the CMP/CL3P/FPLP plenum rating allows installation in air-handling spaces per NEC 300.22(C). Then, plenum-rated cable can substitute for riser cable. However, riser-rated cable cannot substitute for plenum. Therefore, specify this cable for runs above suspended ceilings or in return-air ducts. As a result, installers avoid the common code violation of using riser cable in plenum spaces.
Order Genesis 31041112 from Life Safety Consultants
Life Safety Consultants stocks Genesis plenum cable for commercial installers. To order, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 15 lbs |
|---|---|
| Dimensions | 12 × 12 × 9 in |
| Condition | New |
| Manufacturers | Edwards |
| Part Type | Replacement Part |
