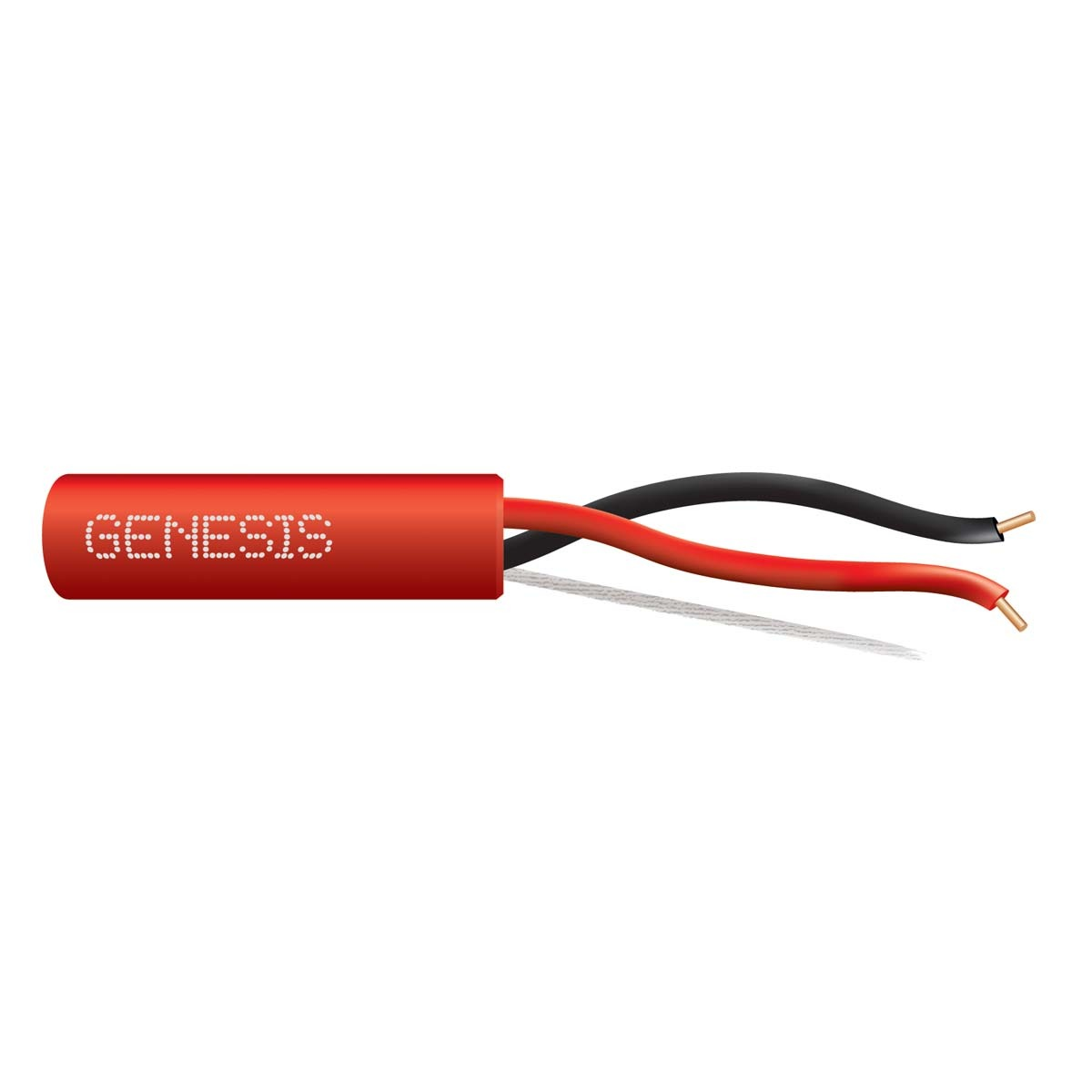

The Genesis 43061104 is an 18 AWG, 2-conductor solid power-limited fire alarm riser cable from Southwire’s Genesis® line. It carries a triple rating of FPLR, CL3R, and CMR. As a result, installers can run it on power-limited fire alarm circuits, Class 3 circuits, and communications risers. The cable ships in a 1000-foot REELEX pull box with a red PVC jacket.
Genesis 43061104 Specifications
The construction features bare copper solid conductors with polypropylene insulation. In addition, the jacket is sunlight-resistant PVC. Furthermore, the cable is rated for 300 volts maximum. Conductor colors are black and red for standard polarity identification. Also, a rip cord assists with jacket stripping at terminations.
Listings and Standards
This 18/2 solid fire alarm cable carries the following manufacturer-published listings:
- UL 1424 — Power-Limited Fire-Alarm Circuit Cables, Type FPLR
- UL 13 — Power-Limited Circuit Cables, Type CL3R
- UL 444 — Communications Cables, Type CMR
- UL 1666 — Standard Test for Flame Propagation in Risers
- CSA C22.2 No. 2556 — FT4 flame test
- Sunlight resistant; RoHS compliant
Installation Notes for Genesis 43061104
First, the FPLR rating allows installation in vertical risers per NEC Article 760. Then, sunlight resistance permits limited exposure to direct sunlight per NEC 310.10(D). However, this cable is NOT plenum-rated. Therefore, do not install it in air-handling spaces per NEC 300.22(C). For plenum environments, use the FPLP-rated equivalent instead.
Order Genesis 43061104 from Life Safety Consultants
Life Safety Consultants stocks Genesis fire alarm cable for commercial installers. To order, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com with your project specs.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 16 lbs |
|---|---|
| Dimensions | 12 × 9 × 12 in |
| Condition | New |
| Manufacturers | Edwards |
| Part Type | Replacement Part |
