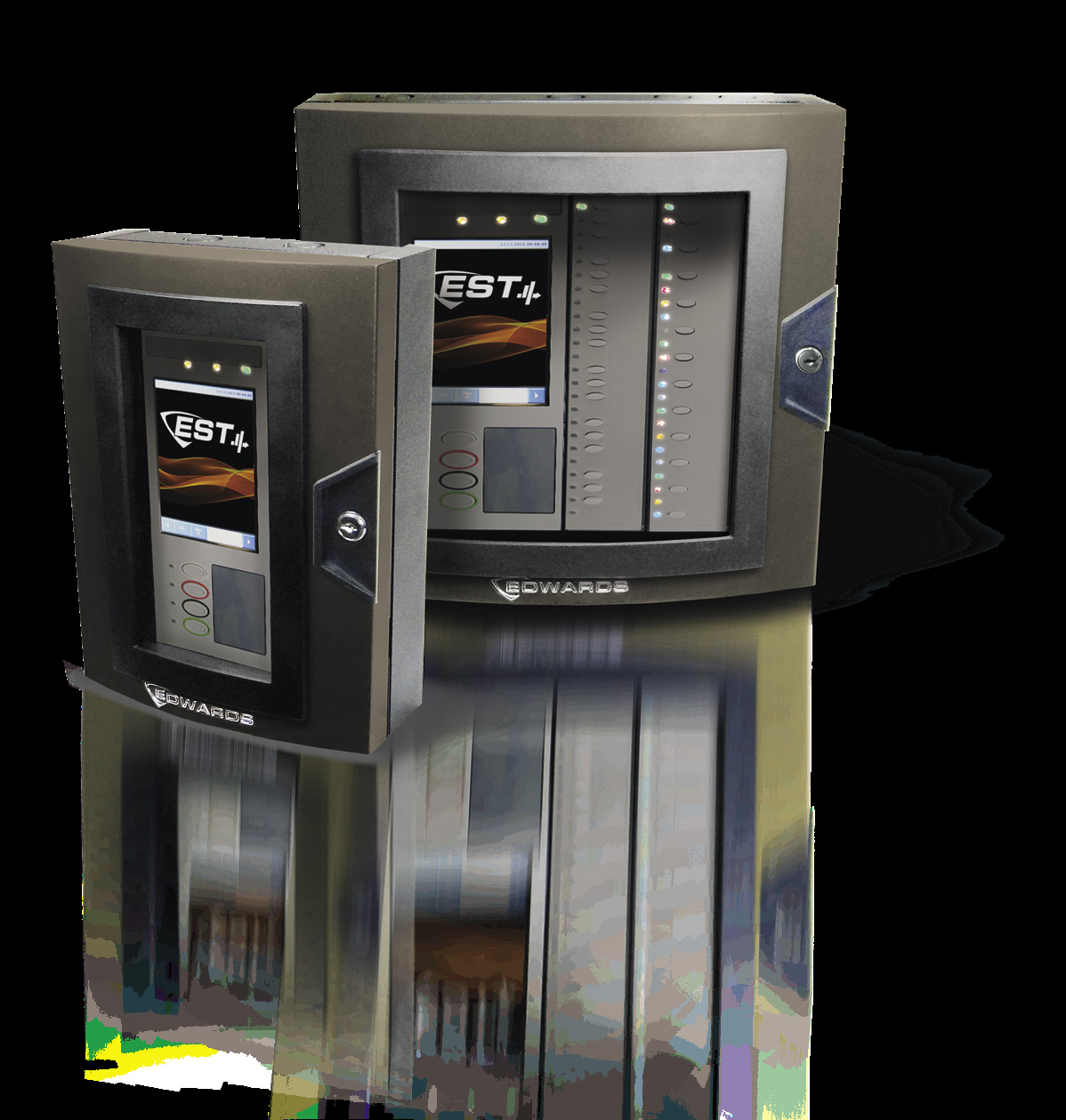

The Edwards 4-16ANN is an EST4 remote annunciator with sixteen control-display module spaces. First, it provides front-panel system status and control anywhere on the EST4 network. In addition, the assembly ships with a 4-ANNCPU, metallic bronze outer door, and black inner door. As a result, basic configuration arrives ready to install.
Edwards 4-16ANN Configuration
The cabinet holds 16 spaces arranged as 2 rows of 8. Therefore, large LED indicator strips, switch modules, or LCD displays can be combined freely. Also, an LCD display, 4-MIC, or 4-FT module each occupies two spaces. Furthermore, each indicator location supports five LED colors selectable at configuration time.
Mounting and Network Wiring
For surface mount installations, order the 4-16ANNMT wallbox separately. Alternatively, for semi-flush mount, order the 3-CAB7B wallbox. In addition, the annunciator requires one or more 4-NET-XX series SFP network controllers (CAT, MM, SM, SMH, SMU, SMD, TP, or TPHC). However, end-user interface modules and filler plates also ship separately.
System Listings and Build
The EST4 system carries UL 864 10th edition, ULC-S527-11, and FM listings as a complete assembly. Specifically, the 4-16ANN annunciator is covered under those listings when installed in a listed wallbox. As a result, no standalone listing applies to the bare door. Ship weight: 37.9 lb (17.19 kg). Door color: metallic bronze (Pantone PMS P 171-16 C). Wallbox color: black.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 42 lbs |
|---|---|
| Dimensions | 50.5 × 31 × 9 in |
| Condition | New |
| Manufacturers | Edwards |
| Part Type | Annunciator |
