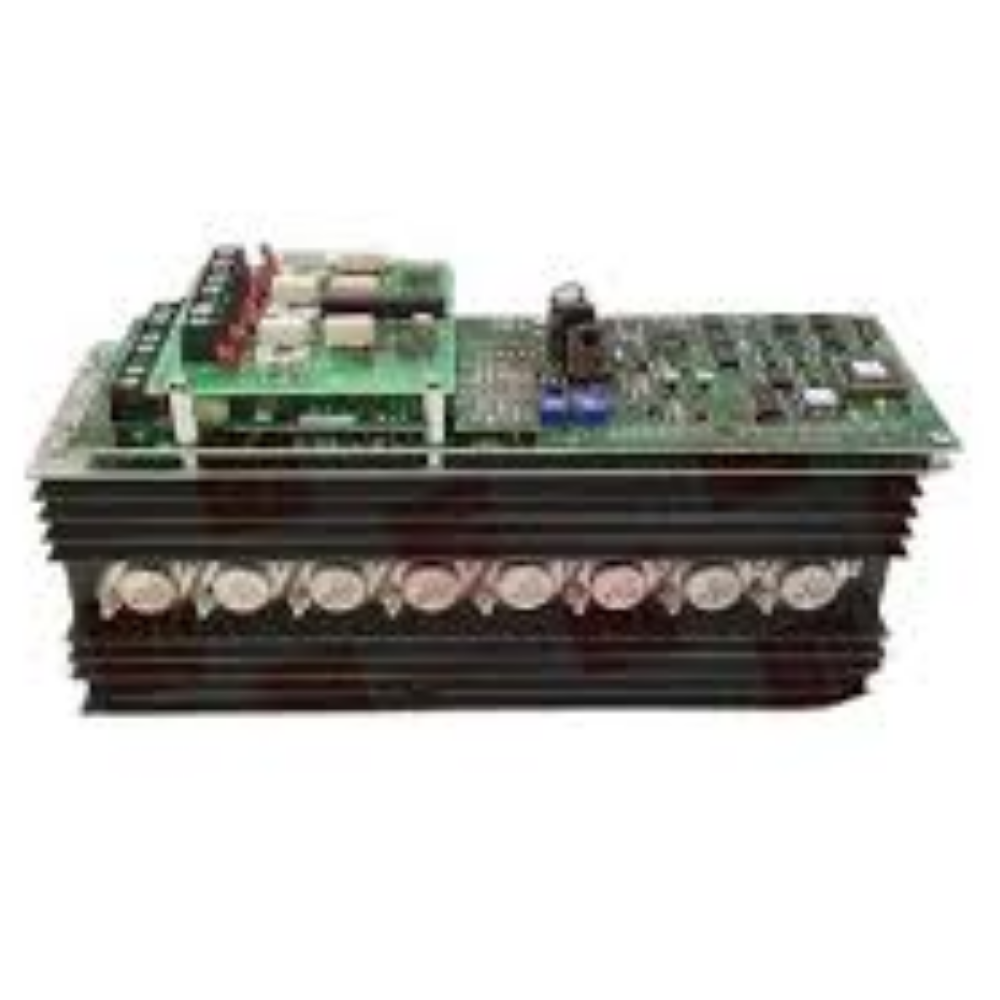

The Simplex 4100-1361 is a Flex-35 amplifier with three NACs at 25 VRMS for 4100ES and 4100U panels.
It powers speaker circuits in a fire alarm voice and alarm communication system. Specifically, it delivers up to 35 watts of audio output. In addition, it provides three on-board notification appliance circuits. As a result, one amplifier can drive several speaker zones.
Simplex 4100-1361 power and supervision
The amplifier draws 19 to 35 VDC from an adjacent power supply. Also, it offers dual-channel operation with an internal backup path. Therefore, a single amplifier carries both a primary and a backup audio channel. Furthermore, the 4100-1361 is compatible with the Constant Supervision NAC (CSNAC) option.
Operating conditions
The amplifier operates from 32°F to 120°F (0°C to 49°C). In addition, it tolerates up to 93% relative humidity, non-condensing.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 10.95 lbs |
|---|---|
| Dimensions | 15.4 × 9.1 × 8.8 in |
| Condition | New |
| Manufacturers | Simplex |
| Part Type | Module |
