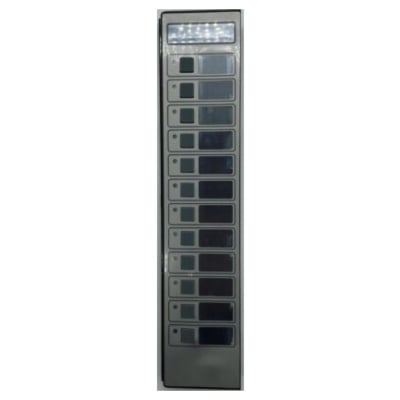

The Edwards 4X-12SR is a control-display module with twelve LED-switches and twelve red LEDs. Specifically, the 4X Series modules provide additional operator-interface capability and mount onto the hinges of option cards inside a control panel electronics chassis.
First, the 4X-12SR module installs in any of the three option card spaces on the panel electronics chassis. Then a blank label insert is provided for labeling each LED-switch position. As a result, the module gives an installer twelve fully labeled control-and-indicate positions.
Verified Specifications
- Twelve LED-switches with red LEDs each
- Operating voltage: 24 VDC
- Standby current: 2.0 mA, plus 1.5 mA for each active LED
- Alarm current: 2.0 mA, plus 1.5 mA for each active LED
- Operating temperature: 32 to 120 °F (0 to 49 °C)
- Operating humidity: 0 to 93% non-condensing
- Environmental class: UL Indoor dry
Installation
Furthermore, the 4X-12SR mounts via hinge pins onto the mounting brackets of an option card. Then a ribbon cable connects the module to the option card. As a result, the assembly closes onto the panel chassis as a single hinged door.
4X Family Variants
However, the 4X-12SR is one of several 4X Series control-display modules. For example, the 4X-24R is twenty-four red LEDs without switches, and the 4X-12RY is twelve red-over-yellow LED pairs. Alternatively, the 4X-12/S1RY is twelve LED-switches with red-over-yellow LEDs. Therefore, choose the module that matches the required switch count and LED color pattern.
Listings
The 4X-12SR is rated UL Indoor dry per the installation sheet P/N 3101777-ML. Specifically, it is covered under the host control panel’s system listing when installed in a listed chassis.
