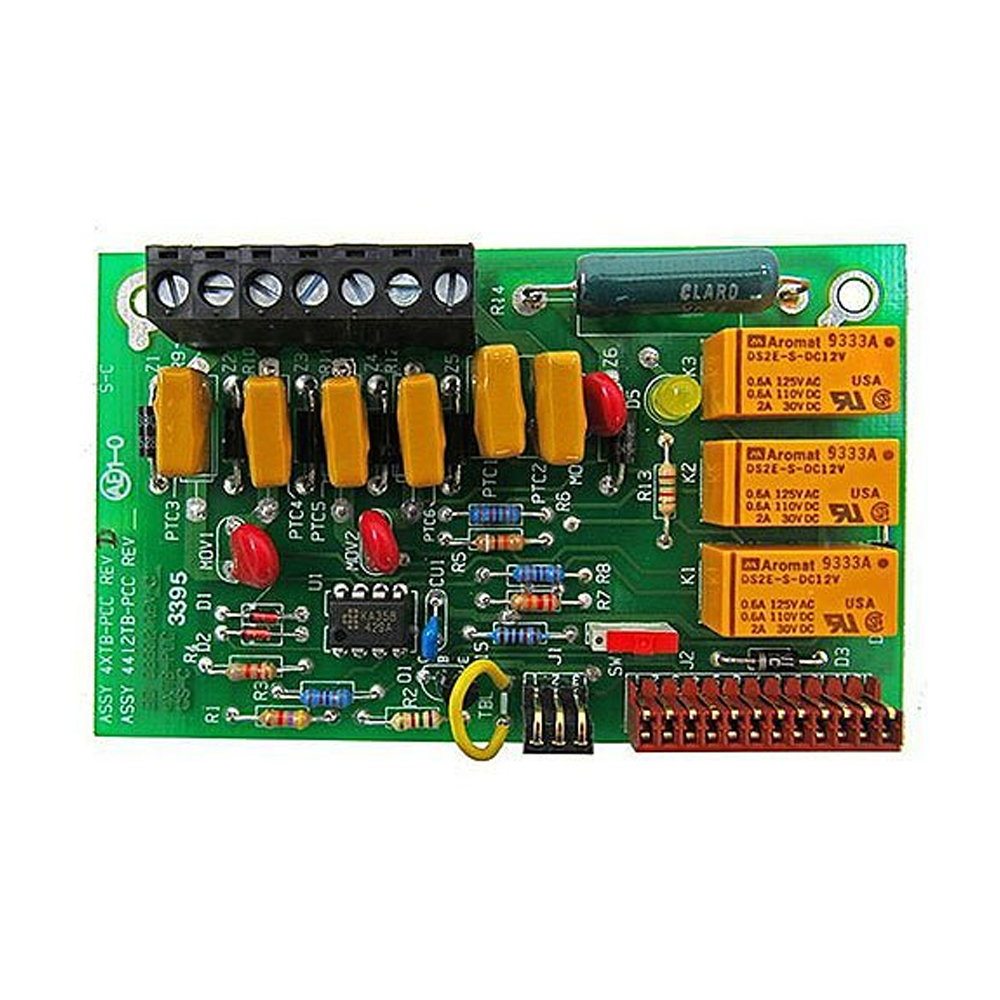

The Fire-Lite 4XTMF is a plug-in transmitter module for the MS-4 fire alarm panel. It also fits the MS-2 panel. Specifically, it provides a supervised output for a local energy municipal box transmitter.
In addition, the 4XTMF supplies alarm and trouble reverse polarity signaling. As a result, the panel can report status to a remote station or city box.
What the Fire-Lite 4XTMF Provides
The module mounts on the panel’s option-module connectors. Therefore, installation is quick and supervised. Also, a disable switch and a disable trouble LED simplify service.
Furthermore, a jumper option lets the reverse polarity circuit open on a system trouble. Specifically, it does so when no alarm condition exists. This supports both municipal box and remote station applications.
Key Features
- Plug-in transmitter module for Fire-Lite MS-2 and MS-4 panels
- Supervised output for a local energy municipal box transmitter
- Alarm and trouble reverse polarity signaling
- Disable switch with disable trouble LED
- Jumper option for reverse polarity on system trouble
Specifications
- Supervisory Current: 5.0 mA
- Trip Current: 0.35 A (drawn from notification appliance power)
- Coil Voltage: 3.65 VDC
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 3 × 1.5 in |
| Condition | New |
| Manufacturers | Fire-Lite |
| Part Type | Relay Module |
