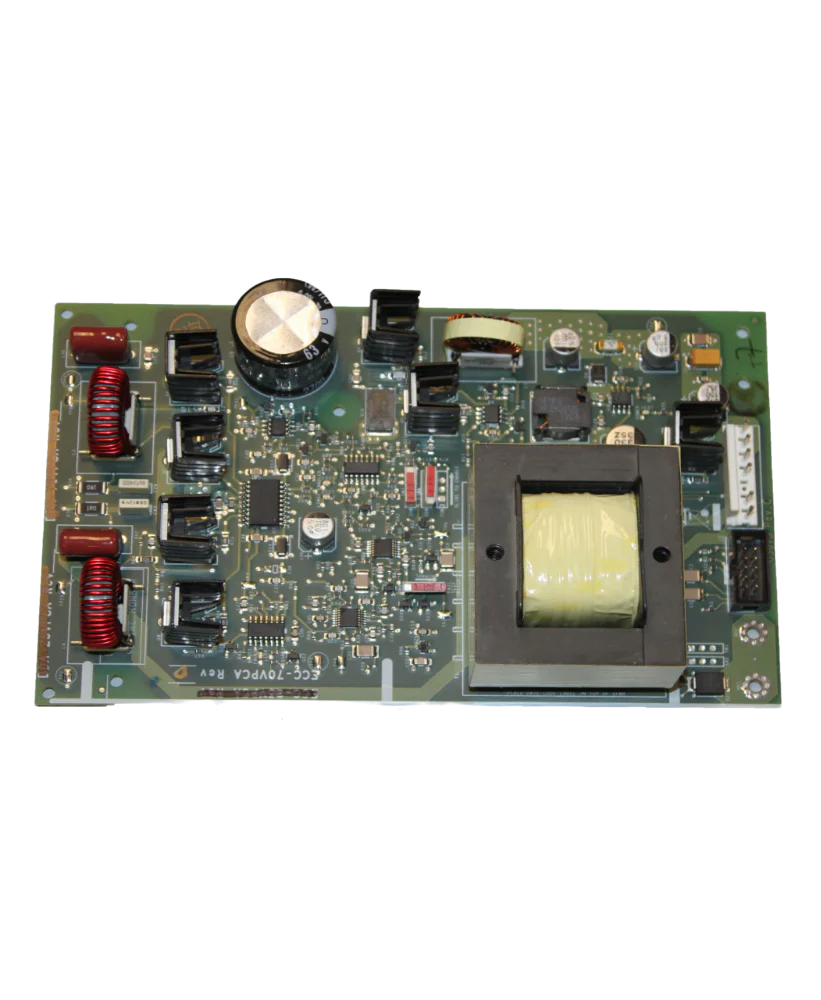

The Fire-Lite ECC-50W-70V 70V Audio Amplifier Module is a critical component for expanding the audio notification capabilities of fire alarm and emergency communication systems in complex commercial and institutional environments. Designed specifically for integration with Fire-Lite control panels, this robust module provides critical audio power amplification for emergency voice communication and building-wide notification strategies.
Professional installers will appreciate the module’s versatile design, which allows seamless expansion of existing audio notification infrastructure. Whether upgrading a legacy system or implementing a new comprehensive emergency communication solution, the ECC-50W-70V delivers reliable performance in high-stakes environments such as corporate campuses, educational facilities, healthcare complexes, and large multi-story commercial buildings.
Key Features
- 50-watt power output at 70V, expandable to 100 watts when paired with base ECC system
- Compatible with Fire-Lite addressable fire alarm control panels and notification appliance circuits
- Robust circuit design with built-in thermal and short-circuit protection mechanisms
- Supports simultaneous emergency and background audio messaging
- UL Listed and compliant with NFPA 72 National Fire Alarm and Signaling Code requirements
- Compact module format for simplified panel integration and reduced installation footprint
Specifications
- Input Voltage: 24VDC nominal
- Maximum Power Output: 50 watts at 70V
- Frequency Response: 20-20,000 Hz
- Total Harmonic Distortion: Less than 1% at rated power
- Signal-to-Noise Ratio: Greater than 80 dB
Professional fire alarm technicians will recognize this module as a critical component for meeting stringent emergency communication requirements across diverse commercial and institutional settings. Its reliable performance ensures clear, audible notification during emergency scenarios, supporting life safety objectives defined by current fire protection standards.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 9 × 8.5 × 4 in |
| Condition | New |
| Manufacturers | Fire-Lite |
| Part Type | Module |
