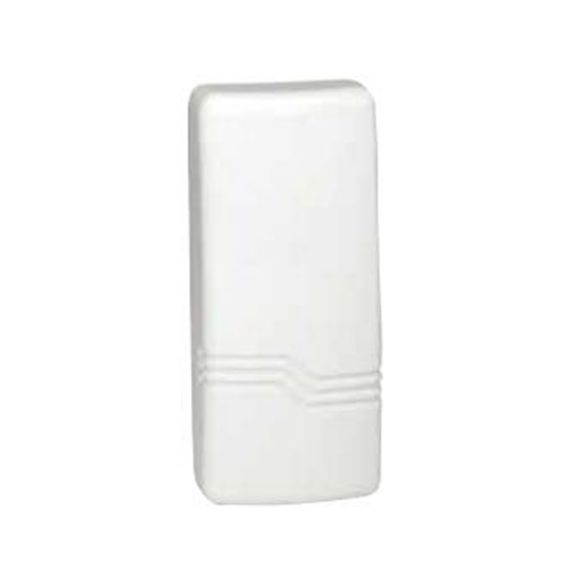

Resideo (5817CBXT) Transmitter,commercial burg

The Resideo 5817CBXT is a wireless 3-zone commercial fire and burglary transmitter for Honeywell 345 MHz panels. First, it converts up to three hard-wired initiating devices into a single supervised wireless point. Then, it reports each loop independently to the receiver.

Resideo 5817CBXT Wireless 3-Zone Commercial Transmitter

The 5817CBXT is purpose-built for commercial applications that mix fire and burglary devices. As a result, technicians can wire a water flow switch, a pull station, and a tamper to a single transmitter. Furthermore, the unit is UL Listed for use in commercial fire and burglary systems.

Loop Configuration

• Loop 1 — supervised; uses a 470K ohm end-of-line resistor; typically used for high-priority commercial fire or burglary zones
• Loop 2 — built-in normally closed reed switch (used with a magnet)
• Loop 3 — normally closed household burglary loop
• Loop 4 — tamper loop, auto-enrolled; contains two tamper switches

Key Features

• 345 MHz wireless — works with Honeywell 5800-series receivers
• 3 input loops plus tamper — multiple devices per transmitter
• Commercial fire and burglary use — compatible with water flow switches, manual pull stations, PIV switches, and remote duct detectors
• Compatible initiating devices include door/window contacts, motion detectors, and glassbreak sensors

Compatibility

The 5817CBXT enrolls to Honeywell 5800-series receivers on 345 MHz commercial control panels. In addition, the transmitter ships with the matching magnet for Loop 2. However, the 470K EOLR for Loop 1 must be added at the device end for supervision.

Ordering the Resideo 5817CBXT

Life Safety Consultants stocks the 5817CBXT. Therefore, contractors building out commercial fire/burg jobs can get same-day shipping on in-stock orders. Also, our team can confirm panel and receiver compatibility before shipment.

For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
