The Resideo (746) is a 15-watt indoor wall-mount speaker for Honeywell alarm and intrusion systems. First, it is wired to a siren driver on the host panel. Then, the driver generates the tone, and the 746 reproduces it at room level.

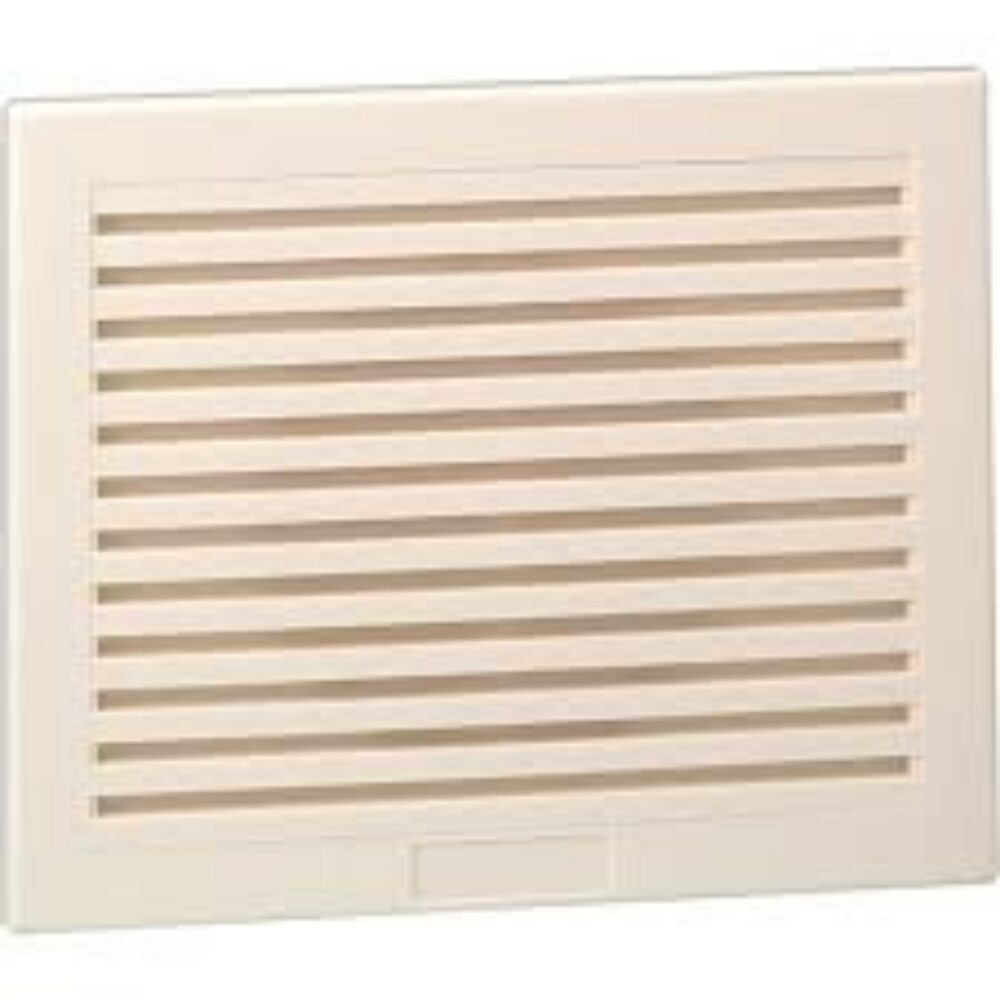

Resideo (746) Indoor 15W Wall-Mount Speaker
The 746 is the wall-mount sibling of the flush-mount 746F. As a result, the 746 sits proud of the surface for a clean retrofit install. Furthermore, the matching trim ring conceals the mounting screws.
Key Features
- 15 watt continuous output, 20 watt peak
- Wall-mount housing — flush-mount variant available as the 746F
- Double polyurethane-coated voice coil — extra resistance to corrosion
- Mounting hardware included
- Requires an external siren driver on the host panel
Compatibility
The 746 is compatible with Honeywell/Ademco panels that include a built-in siren driver. In addition, it works with most aftermarket siren drivers wired to a bell-output circuit. However, the 746 will not produce sound on its own — it is a passive speaker.
Ordering the Resideo (746)
Life Safety Consultants stocks the 746 alongside the 746F flush-mount variant. Therefore, integrators can choose the mounting style that best fits the install. Also, in-stock orders placed before 3pm ET typically ship the same day.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 4.5 × 4.5 × 3 in |
| Condition | New |
| Manufacturers | Resideo |
| Part Type | Replacement Part |
