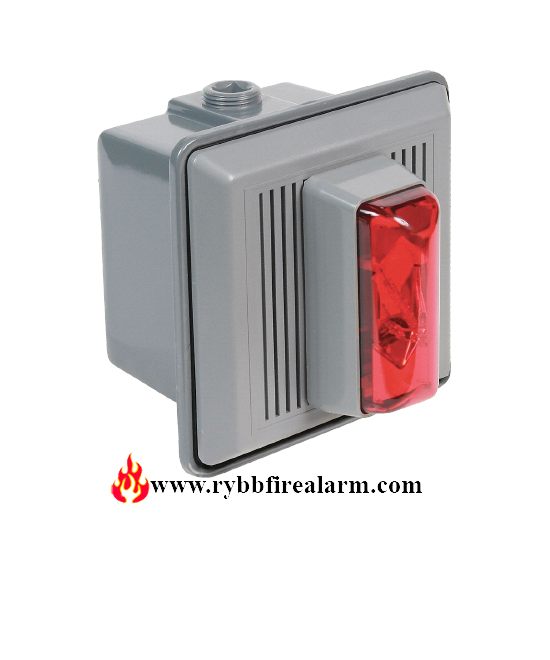

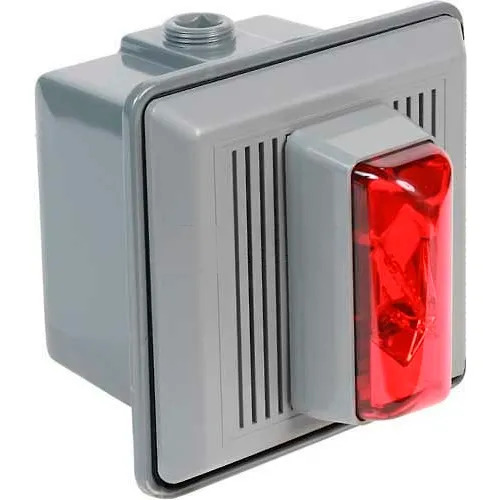

The Edwards 868STRR-N5 surface mount combination horn/strobe represents a high-performance notification appliance designed for comprehensive fire alarm and emergency communication systems in commercial and institutional environments. Engineered for versatility and reliability, this device integrates visual and audible signaling capabilities into a compact, robust unit suitable for indoor and outdoor applications.
Ideal for deployment in educational facilities, healthcare complexes, office buildings, and industrial settings, the 868STRR-N5 provides critical emergency notification functionality. Its independent horn and strobe operation allows for flexible configuration with most addressable and conventional fire alarm control panels, ensuring maximum compatibility with existing infrastructure.
Key Features
- High-intensity xenon strobe with field-selectable candela ratings for optimized visual notification
- Low current draw supporting efficient system design and extended battery backup performance
- Surface mount installation with weatherproof design enabling indoor and outdoor deployment
- Independent horn and strobe activation for granular emergency communication strategies
- UL Listed and compliant with NFPA 72 requirements for emergency notification appliances
- Compatible with standard 24VDC notification circuit configurations
Specifications
- Operating Voltage: 24VDC nominal
- Current Draw: Varies by strobe candela setting (refer to technical documentation)
- Sound Output: 85-95 dBA at 10 feet
- Strobe Intensity: Field-selectable from 15 to 177 candela
- Operating Temperature Range: -40°F to +149°F
- Mounting: Surface mount with included hardware
This notification appliance meets critical fire safety standards including UL 464 (Audible Signal Devices) and UL 1971 (Visual Signal Devices), ensuring reliable performance in emergency notification systems across diverse commercial environments.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 4 lbs |
|---|---|
| Dimensions | 7 × 8 × 8 in |
| Condition | New |
| Manufacturers | Edwards |
| Part Type | Horn / Strobe |
