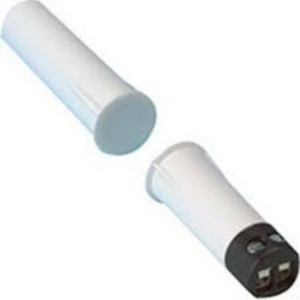

The Resideo 944T-WH recessed contact is a professional-grade magnetic switch designed for comprehensive fire detection and security monitoring in commercial and institutional environments. Engineered for seamless integration with addressable fire alarm panels, this white-finished device provides critical circuit supervision and detection capabilities for doors, windows, and access points across complex facility protection systems.
Specifically crafted for flush-mount installation in wall and door frames, the 944T-WH offers reliable performance in mission-critical applications such as healthcare facilities, educational campuses, high-rise office complexes, and industrial control areas. Its robust design ensures consistent detection and reporting of potential security breaches or fire-related access point status changes.
Key Features
- Recessed form factor with clean, low-profile white finish for discrete architectural integration
- Precision-engineered magnetic reed switch with exceptional sensitivity and repeatability
- Compatible with most commercial fire alarm control panels and addressable communication systems
- UL Listed and compliant with NFPA 72 National Fire Alarm and Signaling Code requirements
- Terminal block connections supporting multiple circuit configuration options
- Corrosion-resistant components designed for long-term reliability in challenging environments
Specifications
- Operating Voltage: 12-24 VDC nominal
- Contact Rating: 0.5A @ 30 VDC
- Operating Gap: 1″ maximum
- Operating Temperature: 32°F to 120°F
- Dimensions: 2.25″ x 1″ x 0.5″ (recessed mounting depth)
Professional fire alarm technicians will appreciate the 944T-WH’s precision engineering, which supports reliable integration with addressable notification appliance circuits, fire alarm control units, and emergency management systems. Ideal for retrofit and new construction projects requiring advanced perimeter monitoring and detection capabilities.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 1 × 1 × 1 in |
| Condition | New |
| Manufacturers | Resideo |
| Part Type | Replacement Part |
