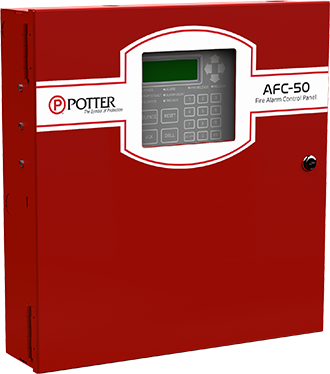

The Potter AFC-50 50-point addressable fire alarm control panel (FACP) represents advanced fire detection and notification technology designed for comprehensive commercial building protection. This robust addressable panel provides sophisticated monitoring and control capabilities for complex fire detection networks, enabling precise zone identification and streamlined emergency response management.
Engineered for high-performance integration within commercial, institutional, and industrial environments, the AFC-50 delivers professional-grade fire alarm system functionality. Its addressable architecture allows individual device tracking and diagnostic reporting, supporting intricate fire detection strategies across multi-zone facilities such as office complexes, healthcare facilities, educational campuses, and manufacturing installations.
Key Features
- Advanced 50-point addressable circuit design supporting comprehensive fire detection and alarm monitoring
- Compatible with multiple detector and initiating device types, including smoke detectors, heat sensors, and manual pull stations
- Built-in communication interfaces for seamless integration with building management and emergency response systems
- Programmable zone configurations supporting complex architectural and safety requirements
- Enhanced diagnostics with individual device status reporting and fault identification
- UL 864 and NFPA 72 compliant, meeting stringent fire protection industry standards
Specifications
- Input Voltage: 120VAC primary, 24VDC backup
- Operating Temperature Range: 32°F to 120°F
- Standby Current: Approximately 250mA
- Alarm Current: Maximum 500mA per notification circuit
- Dimensions: 24″ x 16″ x 8″ (panel enclosure)
The AFC-50 supports comprehensive fire alarm system architectures, providing reliable emergency detection and notification across diverse commercial and institutional environments. Its modular design facilitates straightforward installation and maintenance for professional fire alarm technicians and system integrators.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 22 lbs |
|---|---|
| Dimensions | 20 × 19 × 8 in |
| Condition | New |
| Manufacturers | Potter |
| Part Type | Replacement Part |
