Altronix (AL400ULXJ) Al400ul ul xl encl red

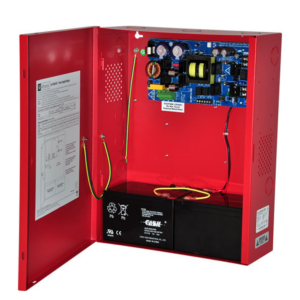

The Altronix AL400ULXJ is a single-output 12VDC or 24VDC power supply and charger from the AL400ULX series. Specifically, it supplies 4 A at 12VDC or 3 A at 24VDC, in a red Altronix enclosure.

First, the AL400ULXJ converts 115VAC, 60Hz mains into a single Class 2 power-limited DC output. Then, the installer selects either 12VDC or 24VDC on the board. In addition, an integrated charger maintains a sealed lead-acid or gel backup battery. As a result, the supply transitions to battery on AC loss. Furthermore, three Form C contacts report AC-fail, low-battery, and battery-presence status to the host panel.

Altronix AL400ULXJ — Verified Specifications

• Input: 115VAC, 60Hz, 3.5 A max
• Input fuse: 5 A / 250 V
• Output: 12VDC at 4 A continuous, or 24VDC at 3 A continuous, selectable
• Output protection: fused 3.5 A or PTC 2.5 A, plus overvoltage protection
• Filtered and regulated DC output
• Built-in battery charger; 0.7 A max charge current
• Automatic switchover to standby battery on AC loss
• Supervision: AC-fail, low-battery, and battery-presence via Form C contacts
• Operating temperature: 0 °C to 49 °C (32 °F to 120 °F)
• Storage temperature: -20 °C to 70 °C (-4 °F to 158 °F)
• Listings: per AL400ULX series — UL 294 (Access Control), UL 1481 (Power Supplies for Fire Protective Signaling)

Application Note — Derate for Fire-Alarm Use

However, end-use derating applies for UL 1481 fire-protective service. Therefore, confirm with the AL400ULX series installation instructions (AL400ULXJ_DIP.pdf) before applying the unit in a fire-alarm role. Alternatively, contact Life Safety Consultants for sizing guidance on your specific FACP and NAC load.

Order or Get Application Help

To order the Altronix AL400ULXJ or get sizing help for your load, call 1-888-557-0558. You can also email sales@lifesafetycom.com.
