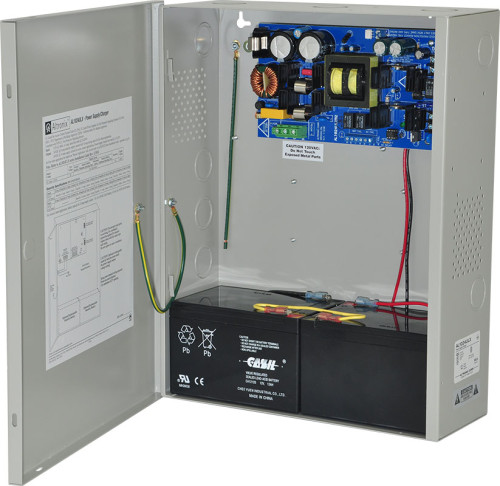

Altronix AL1024ULX: Professional-Grade Fire Alarm Power Supply and Charger
The Altronix AL1024ULX is a robust, UL-listed power supply and battery charger specifically engineered for mission-critical fire alarm and access control systems in commercial and institutional environments. Designed to meet the stringent requirements of NFPA 72 National Fire Alarm and Signaling Code, this module provides reliable power management for complex life safety infrastructure.
Engineered for professional fire alarm installers and facilities managers, the AL1024ULX delivers consistent, regulated power to addressable fire alarm panels, initiating devices, notification appliances, and integrated building control systems. Its advanced charging circuitry ensures optimal battery maintenance and extended standby power performance during emergency scenarios.
Key Features
- 8A continuous power output with intelligent battery charging management
- UL Listed for fire alarm and access control applications (UL 864 compliant)
- Selectable float/boost charge voltages for diverse battery configurations
- High-efficiency power conversion with low thermal dissipation
- Compatible with sealed lead-acid and gel cell battery technologies
- Comprehensive fault protection with electronic current limiting
Specifications
- Input Voltage: 115/230VAC, 50/60Hz
- Output Voltage: 12/24VDC configurable
- Maximum Current: 8 Amperes continuous
- Battery Charging: Automatic temperature-compensated float/boost
- Operating Temperature: 32°F to 120°F (0°C to 49°C)
Typical installation environments include commercial office complexes, educational institutions, healthcare facilities, and multi-tenant buildings requiring reliable, compliant power management for fire detection and notification systems. The AL1024ULX integrates seamlessly with most major fire alarm control panels and supports complex, distributed detection architectures.
Professional installers will appreciate the module’s compact design, which facilitates streamlined mounting in electrical enclosures, fire alarm cabinets, and dedicated power management zones. Comprehensive protection circuits safeguard against reverse polarity, short circuit, and over-temperature conditions.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 9.25 lbs |
|---|---|
| Dimensions | 4.5 × 12 × 15.5 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Module |
