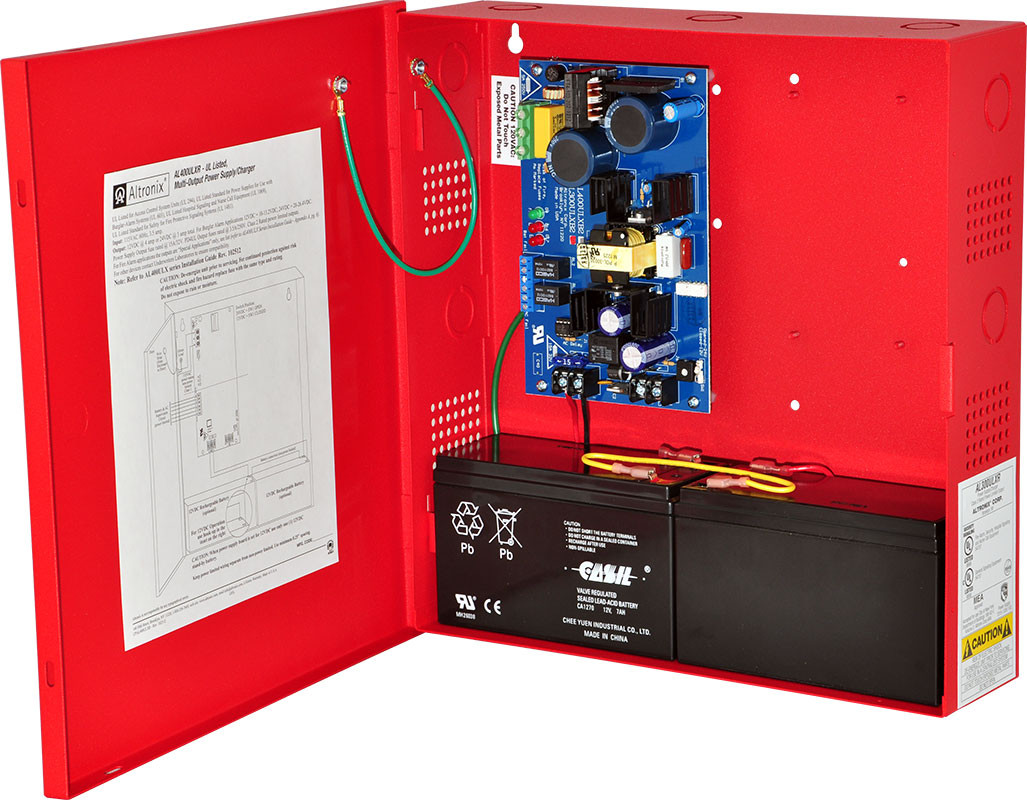

Altronix (AL400ULXR) Al400ulx ps in red enclosure

The Altronix AL400ULXR is a 12/24VDC power supply and charger housed in a red BC300 enclosure. Specifically, it supplies a single Class 2 power-limited output at 4 A (12VDC) or 3 A (24VDC).

First, the AL400ULXR converts 115VAC, 60Hz mains into a selectable 12VDC or 24VDC bus. Then, an integrated charger maintains up to two 12VDC / 7Ah backup batteries. In addition, the supply transitions to battery on AC loss with zero voltage drop. As a result, the unit is a common choice when the AHJ requires a red fire-rated enclosure on the wall. Therefore, technicians use the AL400ULXR for smaller NAC-extender or fire-system auxiliary power roles.

Altronix AL400ULXR — Verified Specifications

• Input: 115VAC, 60Hz, 3.5 A
• Input fuse: 3.5 A / 250 V
• Output: 12VDC at 4 A continuous, or 24VDC at 3 A continuous, selectable; Class 2 power-limited
• Built-in battery charger; 0.7 A max charge current; up to two (2) 12VDC / 7Ah batteries
• Automatic switchover to standby battery on AC loss
• Filtered, electronically regulated output with short-circuit and thermal-overload protection
• Enclosure: red BC300, 13″ W × 13.5″ H × 3.25″ D (330 × 343 × 83 mm)
• Weight: 8.65 lb (3.86 kg)
• Operating temperature: 0 °C to 49 °C (32 °F to 120 °F)
• Listings: per AL400ULX series — UL 294 (Access Control), UL 1481 (Power Supplies for Fire Protective Signaling)

Application Note — Derate for Fire-Alarm Use

However, end-use derating applies for UL 1481 fire-protective service. Therefore, confirm with the AL400ULX series installation instructions before applying the unit in a fire-alarm role. Alternatively, contact Life Safety Consultants for sizing guidance on your specific FACP and NAC load.

Order or Get Application Help

To order the Altronix AL400ULXR or get sizing help for your load, call 1-888-557-0558. You can also email sales@lifesafetycom.com.
