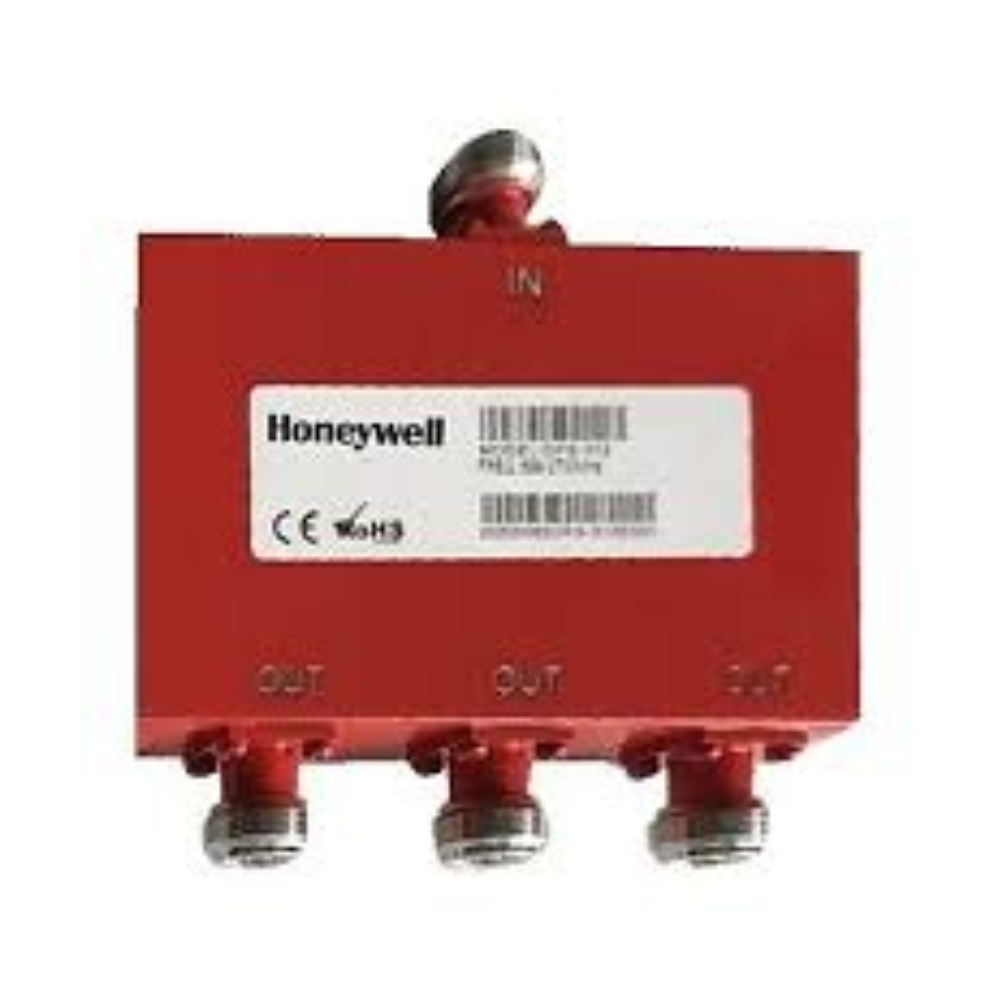

The Honeywell BDA-PS3-W2 is a 3-way broadband power splitter. It distributes one RF input across three output ports. In addition, it covers the 698 MHz to 2700 MHz band used by public-safety and cellular DAS.
The BDA-PS3-W2 is part of Honeywell’s BDA FLEX passive device family. Therefore, it integrates cleanly with Honeywell bi-directional amplifiers. As a result, integrators can fan one BDA output across multiple antenna runs without rewiring.
Honeywell BDA-PS3-W2 Specifications
First, the frequency range is 698 MHz to 2700 MHz. Power handling is 50 watts as a splitter. Then, the connectors are N-female on all ports. Furthermore, the part is designed for compact installation in DAS junction boxes.
Typical Application
Public-safety DAS deployments use the BDA-PS3-W2 to split BDA output. For example, one BDA can feed three antenna legs at equal level. Also, the broadband range supports both 700/800 MHz public-safety and cellular bands.
Order or Get Application Help
Life Safety Consultants stocks Honeywell BDA passive devices. To order the Honeywell BDA-PS3-W2 or get DAS layout help, call our team. We also support full BDA bill-of-material quotes.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.8 lbs |
|---|---|
| Dimensions | 6.25 × 4.75 × 1.25 in |
| Condition | New |
| Manufacturers | Honeywell |
| Part Type | Smoke Sensor |
