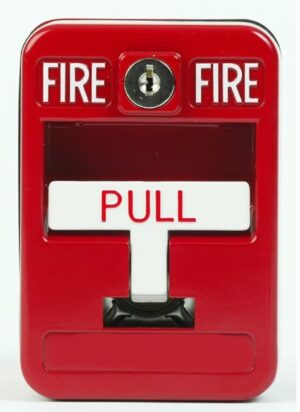

The Bosch FMM-100SATK is a single-action manual pull station. It uses a durable die-cast metal housing. First, a single downward pull activates the alarm. As a result, occupants can trigger the fire alarm quickly and intuitively.
How the Bosch FMM-100SATK signals
This station provides a dry-contact output. Therefore, it stays panel-agnostic and works with virtually any fire alarm control panel. In addition, a break-rod mechanism locks the handle once operated. Consequently, the latched handle gives a clear visual sign of activation.
Key features
- Single-action activation (one pull)
- Die-cast metal housing, red with white pull handle
- Dry-contact output for panel-agnostic wiring
- Break-rod visual activation indicator
- Includes the SATK trim kit and mounting hardware
After each activation, you simply reset the station. Specifically, install a replacement break rod to return it to service. The correct replacement rod is the Bosch FMM-100GR. Finally, Life Safety Consultants stocks and supports the full FMM-100 line.
For more information, contact the Life Safety Consultants team at 1-888-557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | .5 lbs |
|---|---|
| Dimensions | 4.75 × 3.25 × 1.1 in |
| Condition | New |
| Manufacturers | Bosch |
| Compatible Panels | Panel-agnostic &mdash, compatible with most fire alarm panels |
| Cross Reference | FMM-100DATK, FMM-100SATK-NYC, FMM-100SAT2CKEX |
| Specification | Single-action activation, addressable, dry contact output, red housing, trim kit included |
